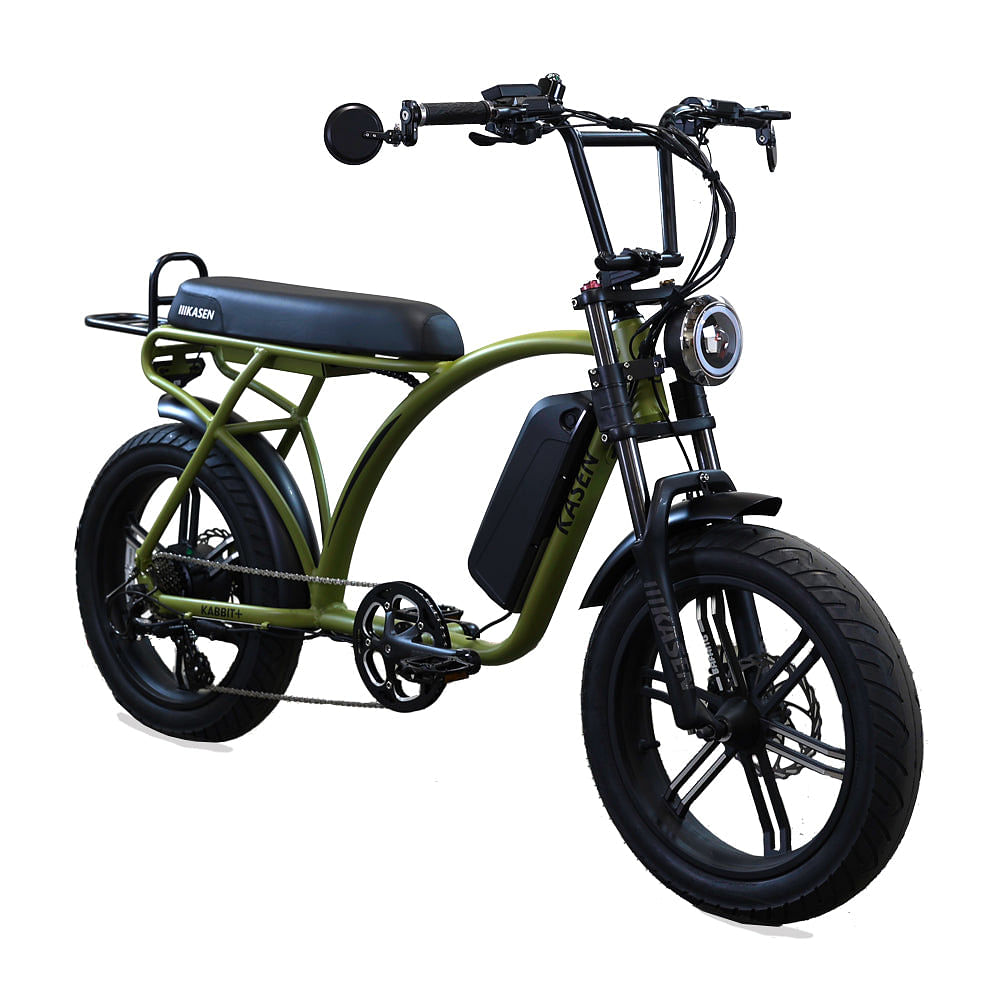

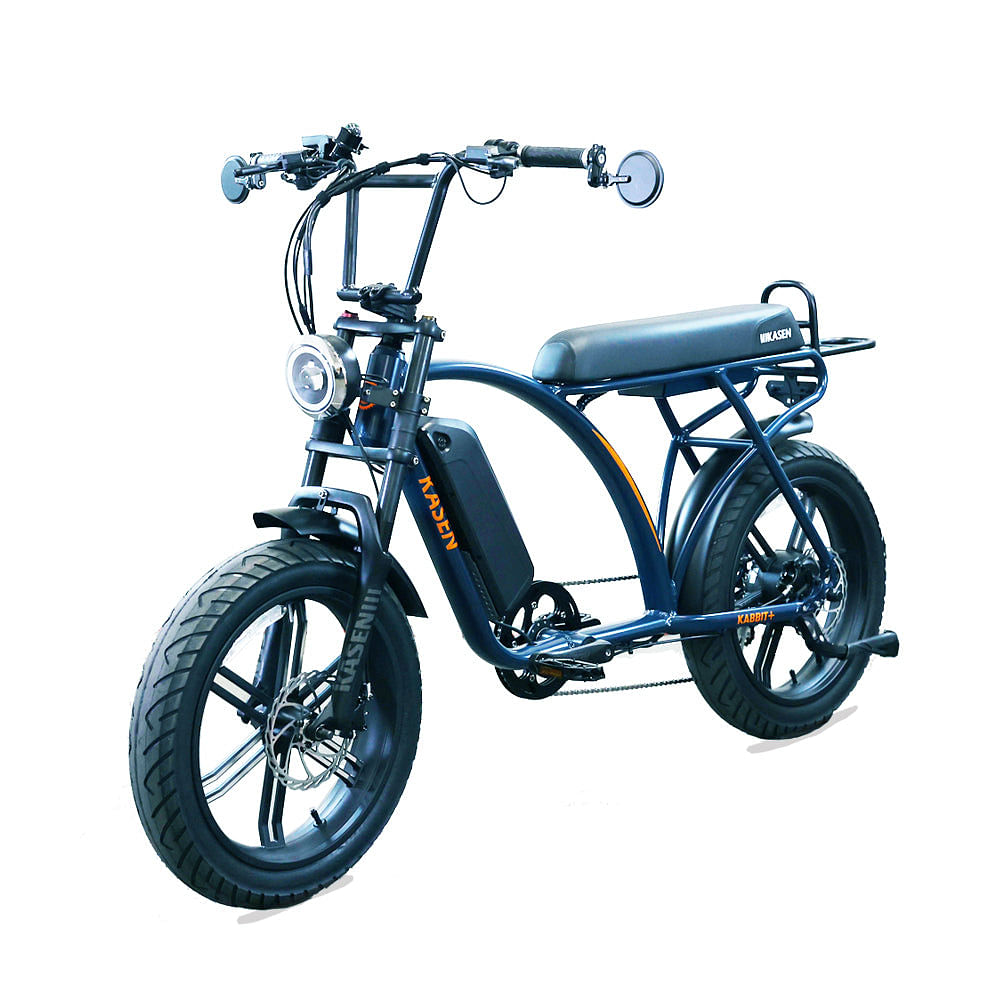

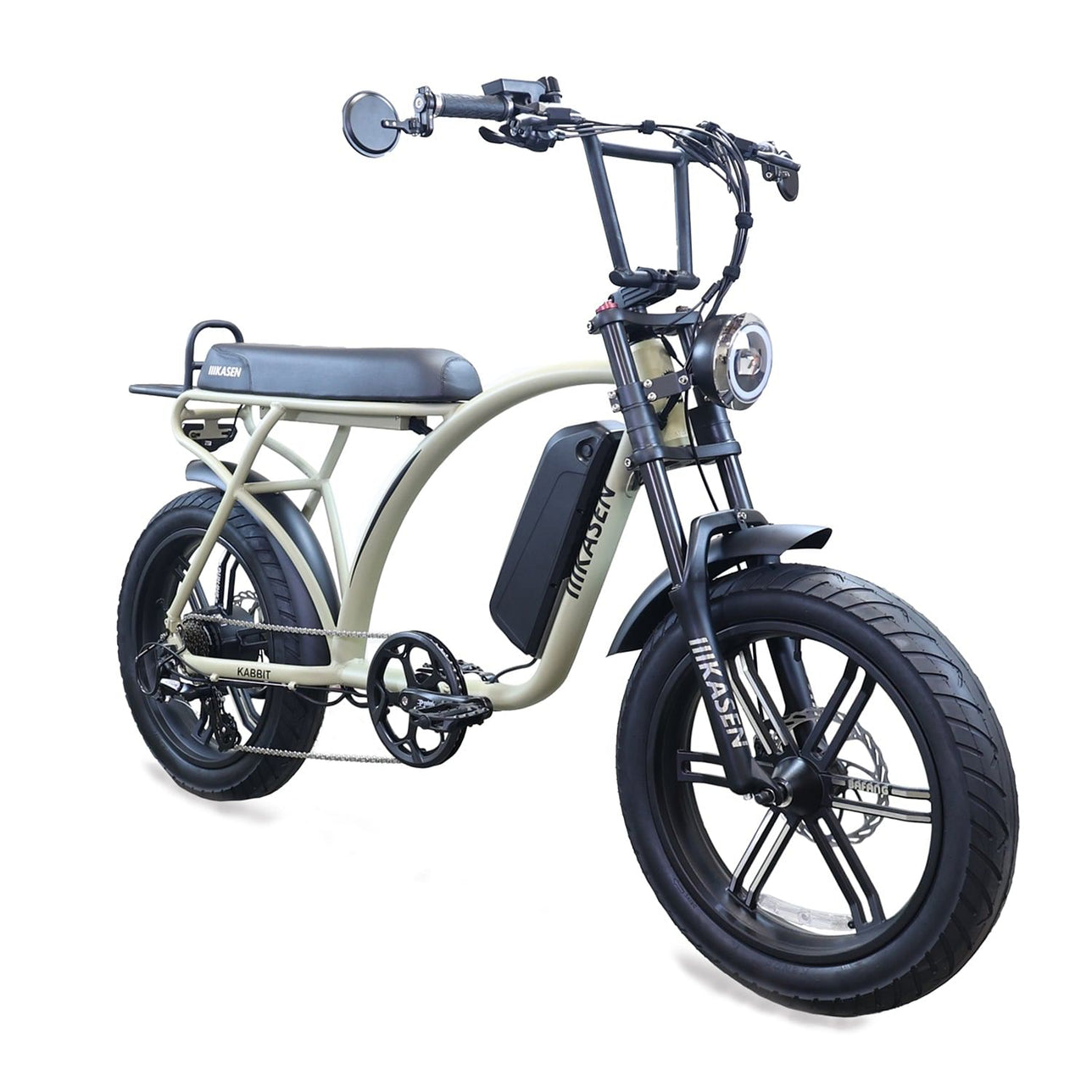

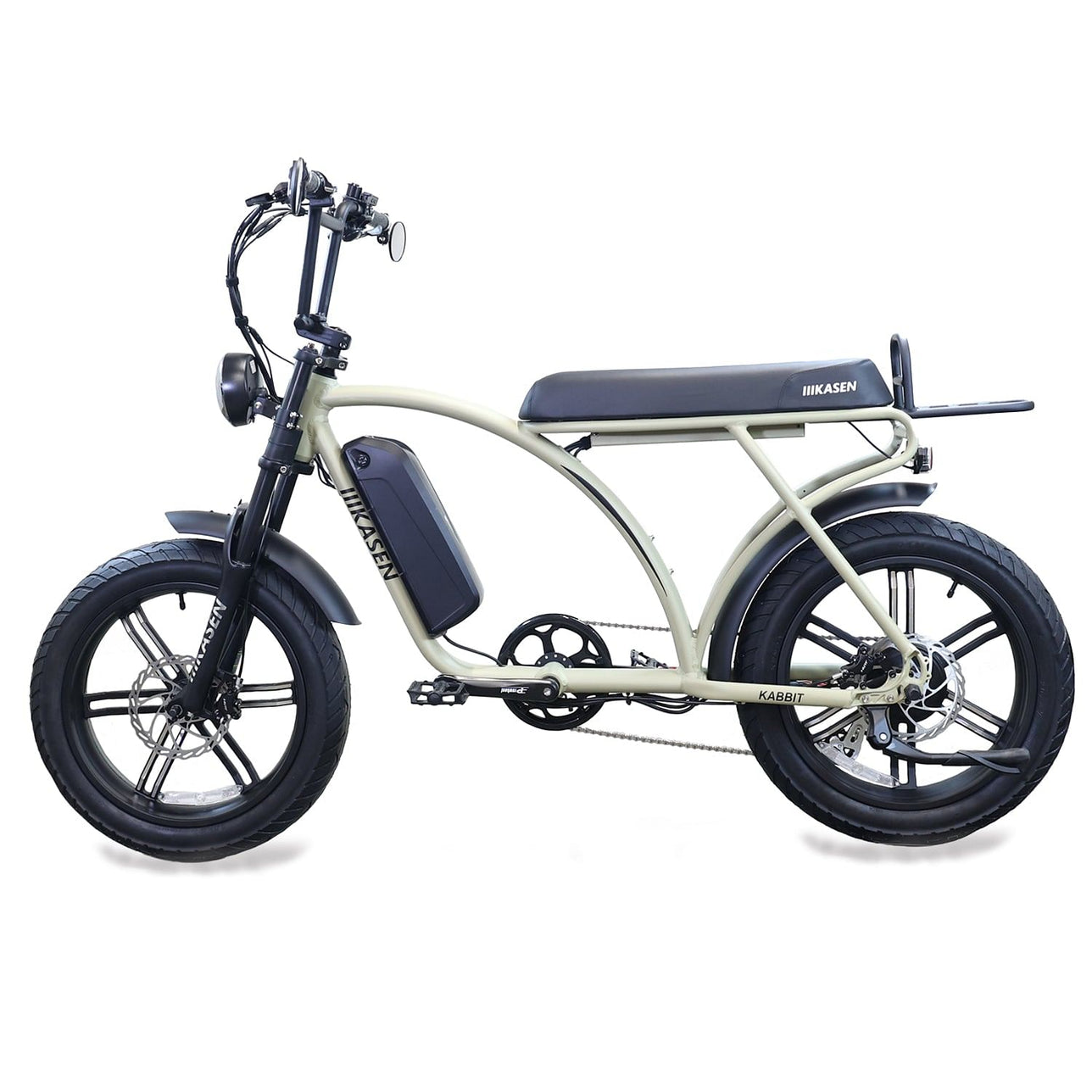

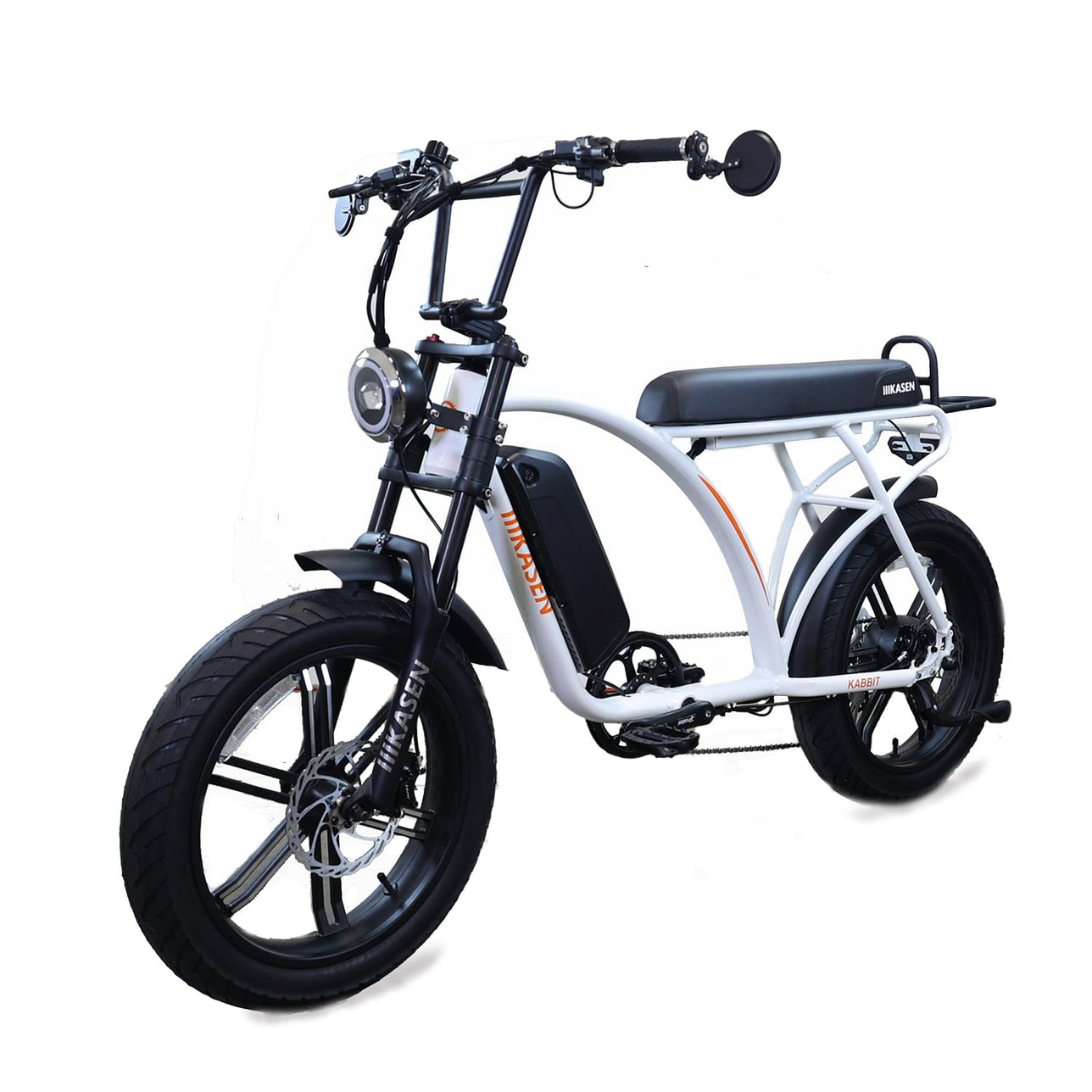

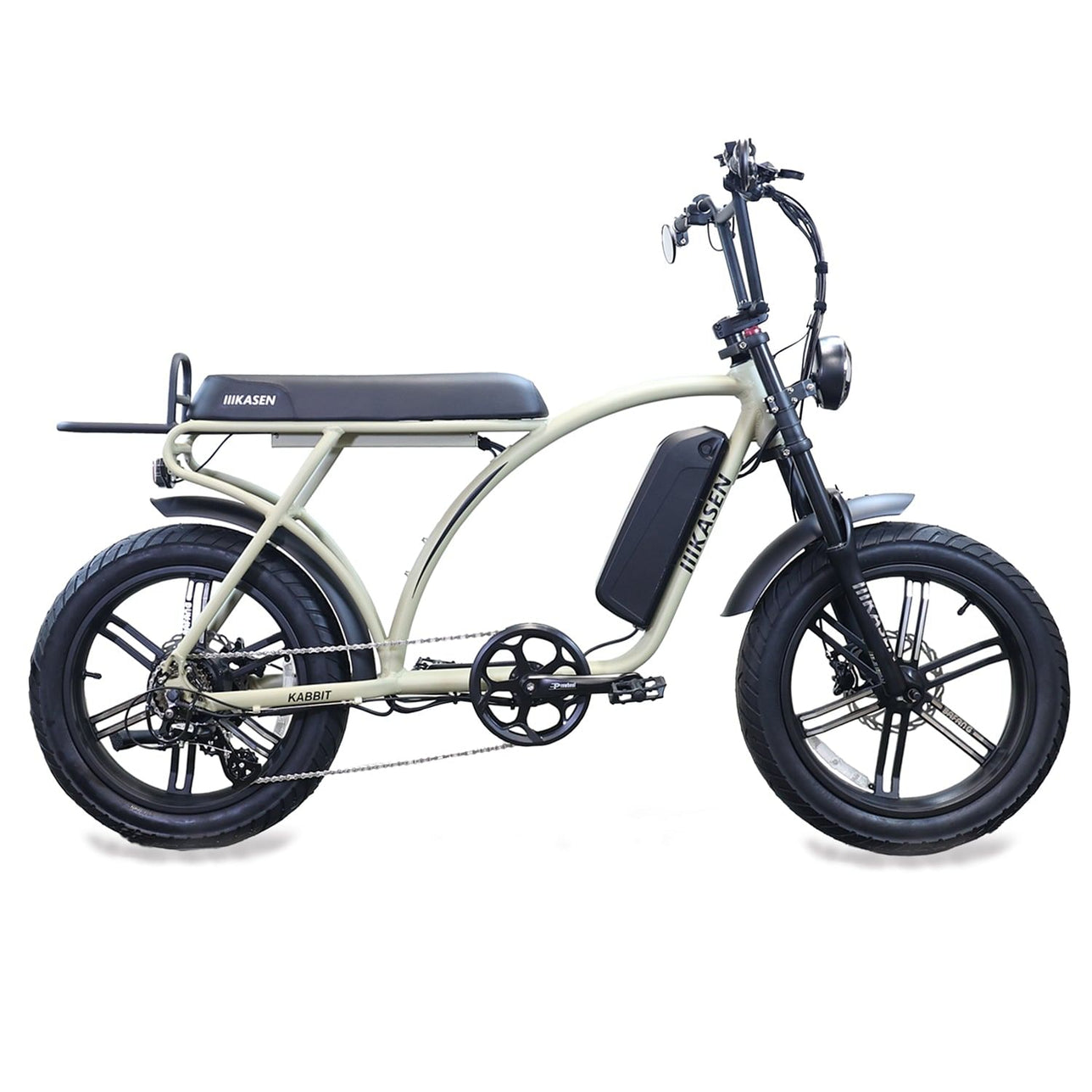

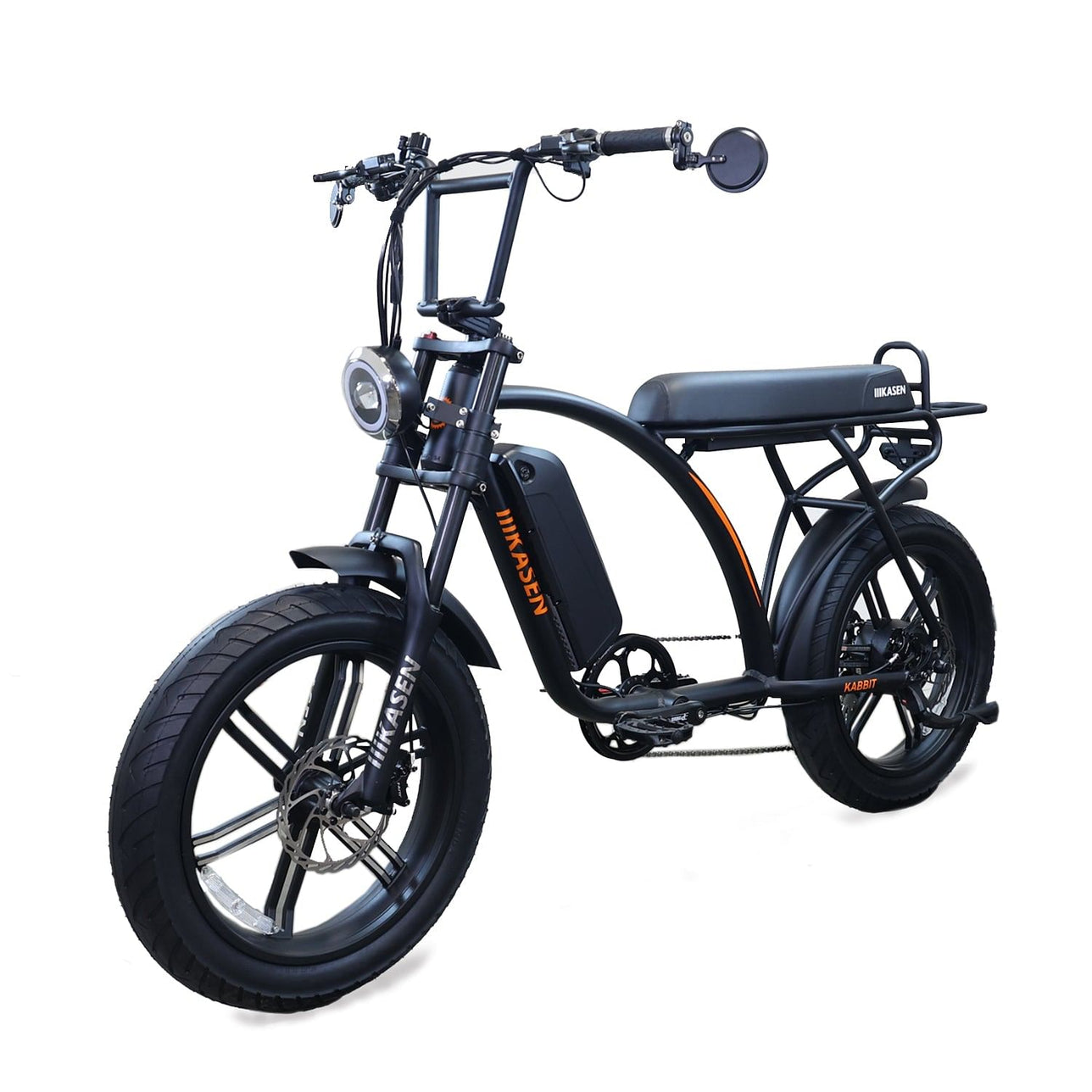

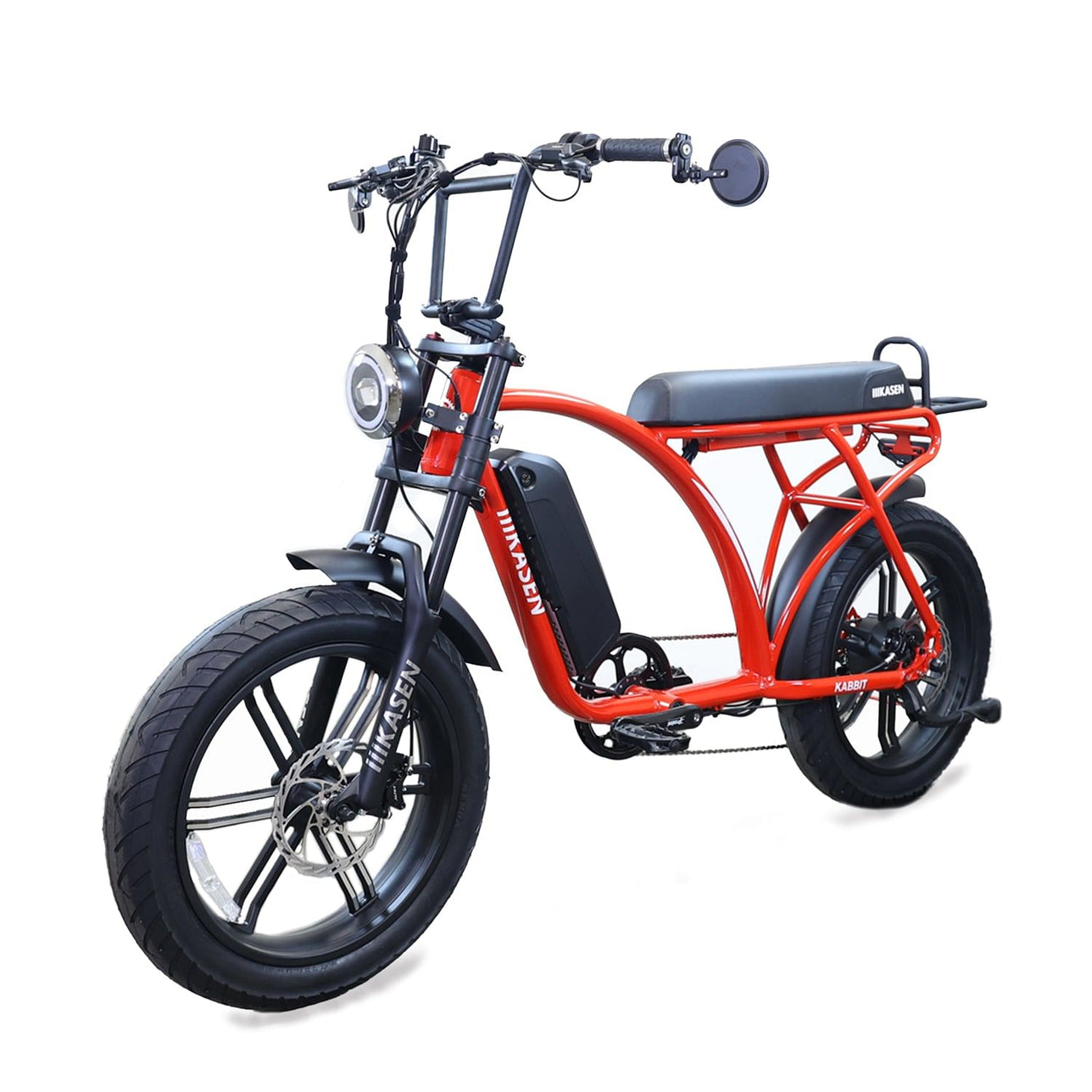

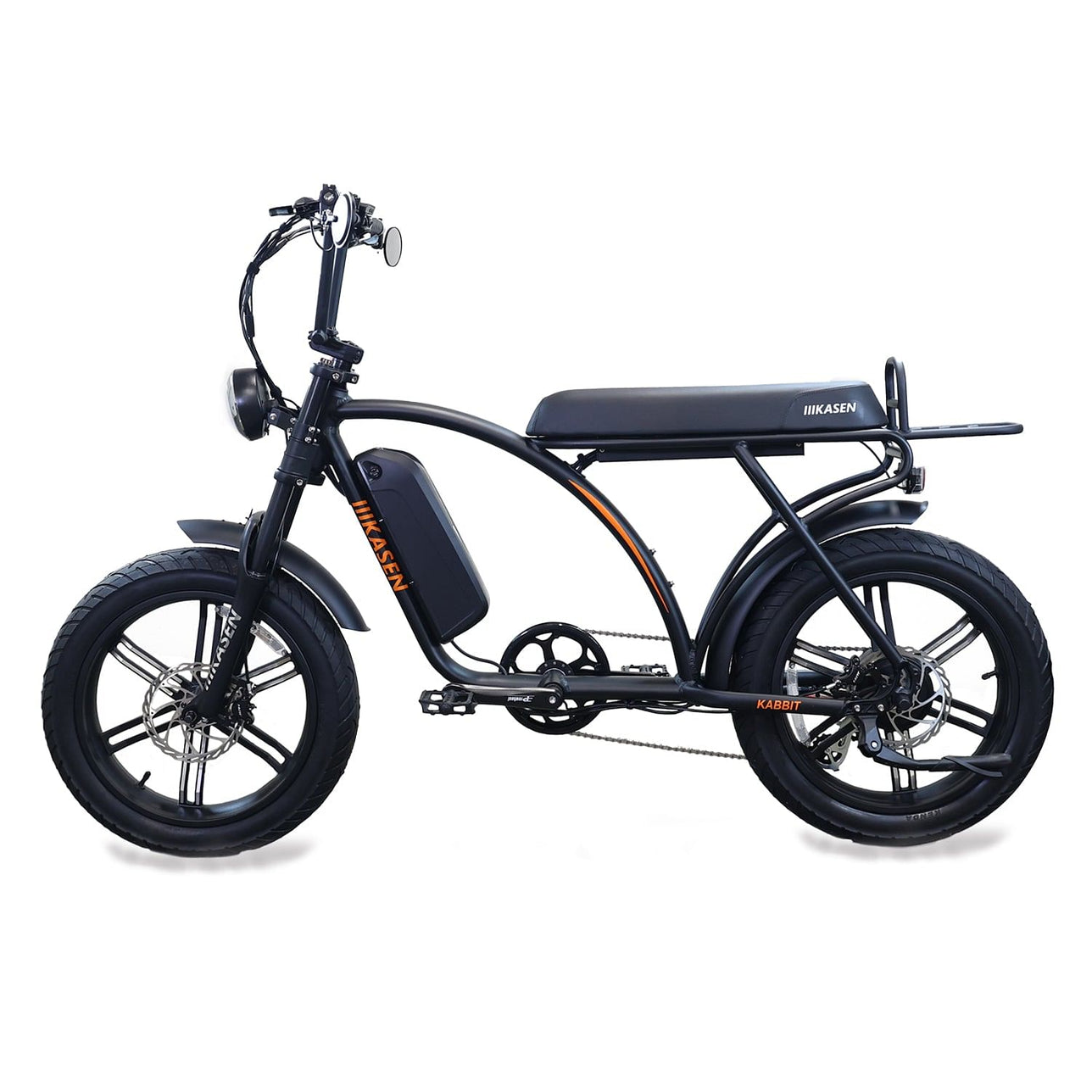

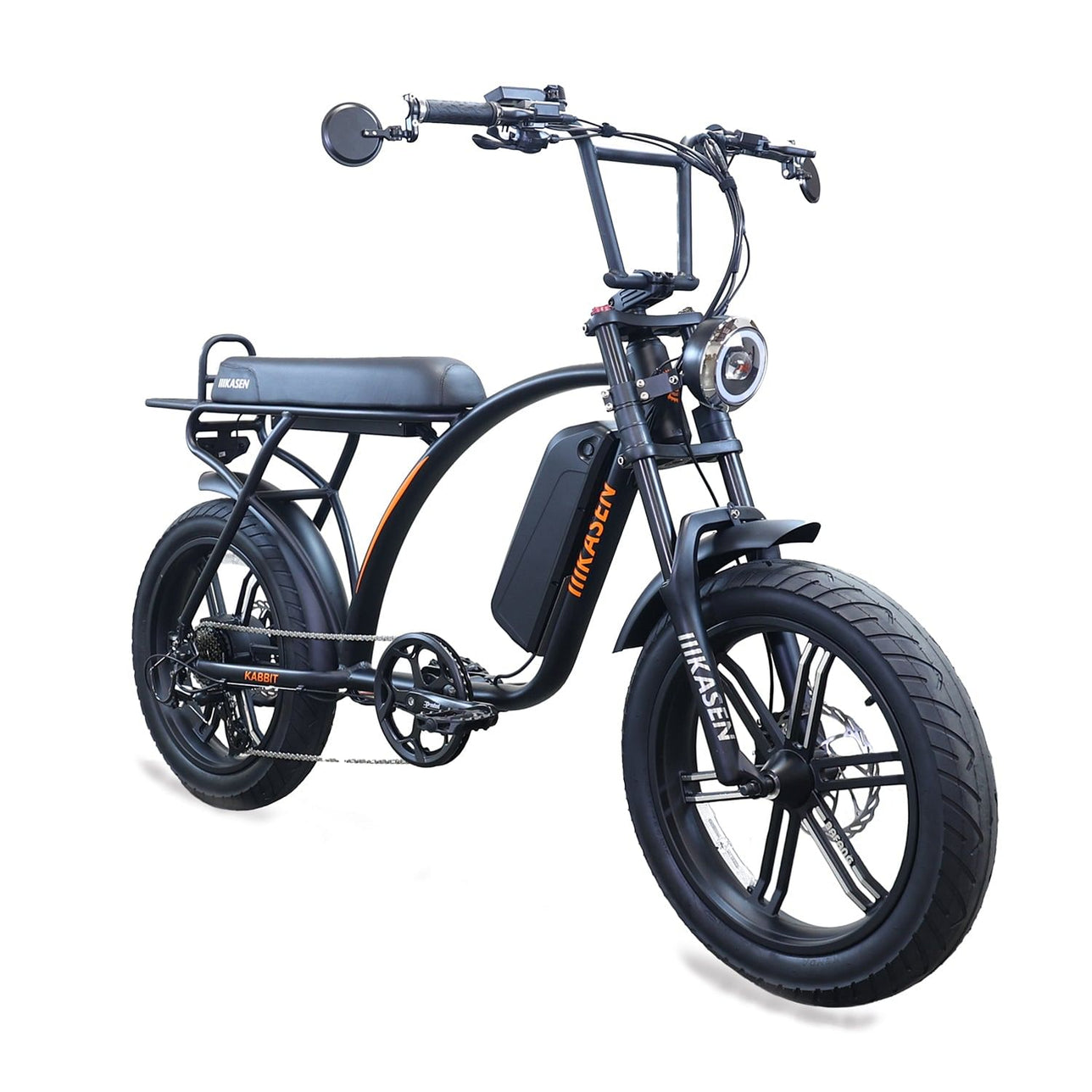

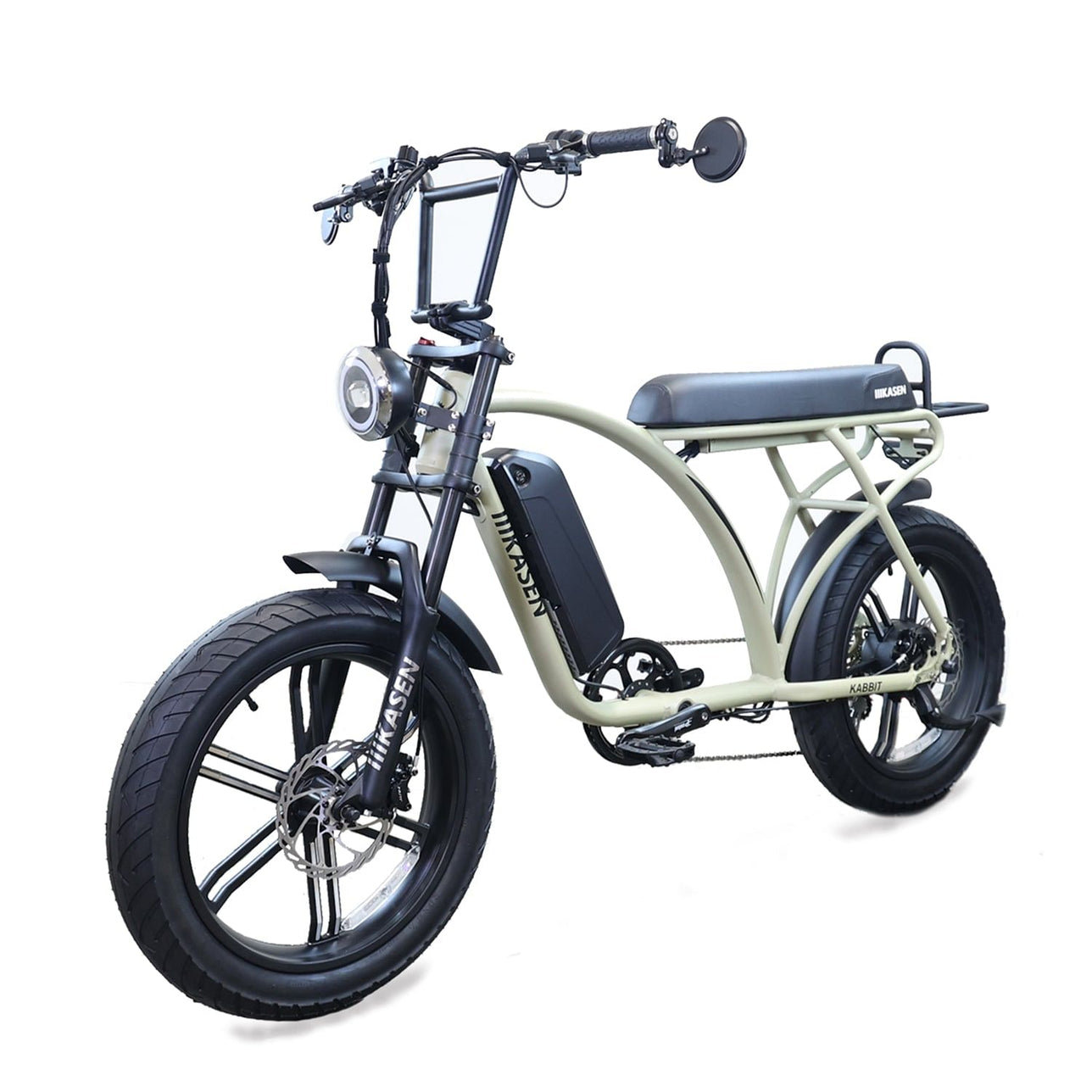

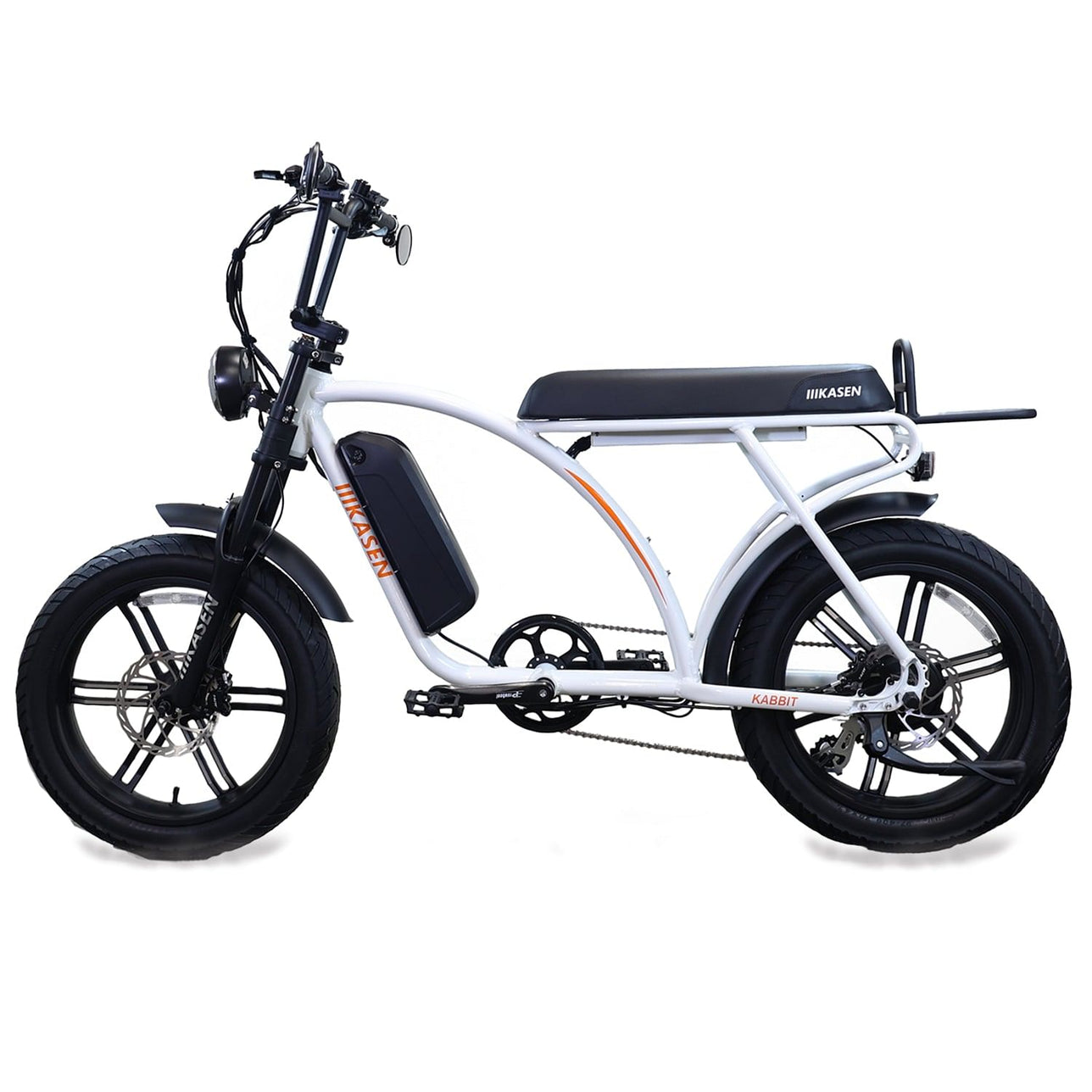

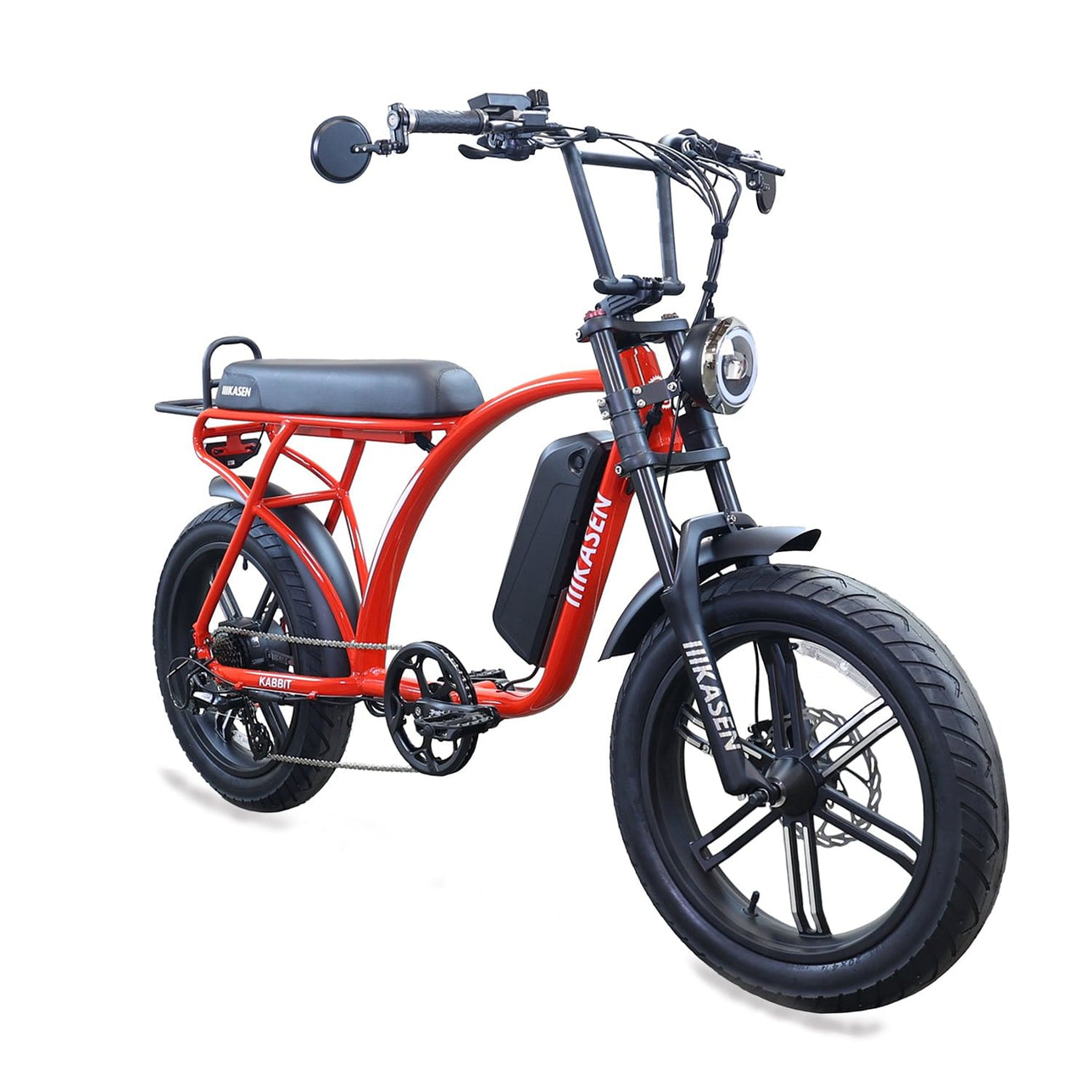

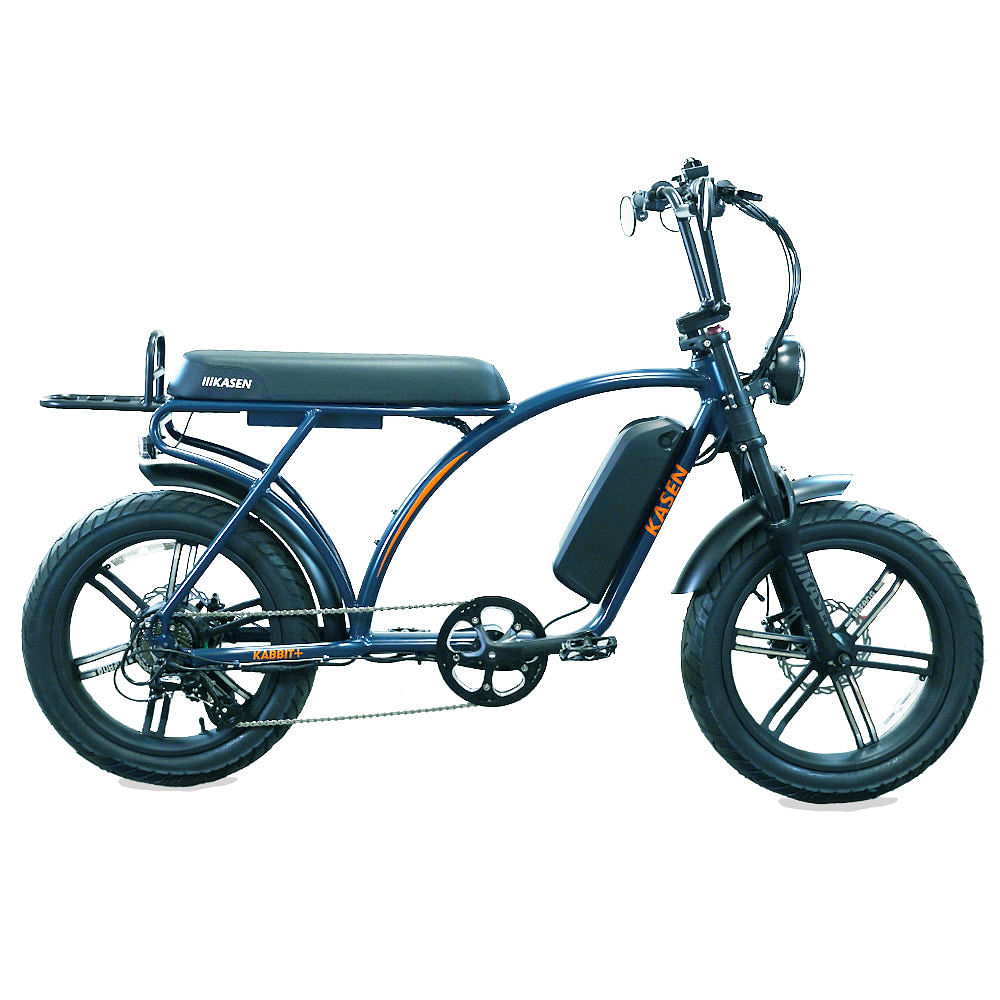

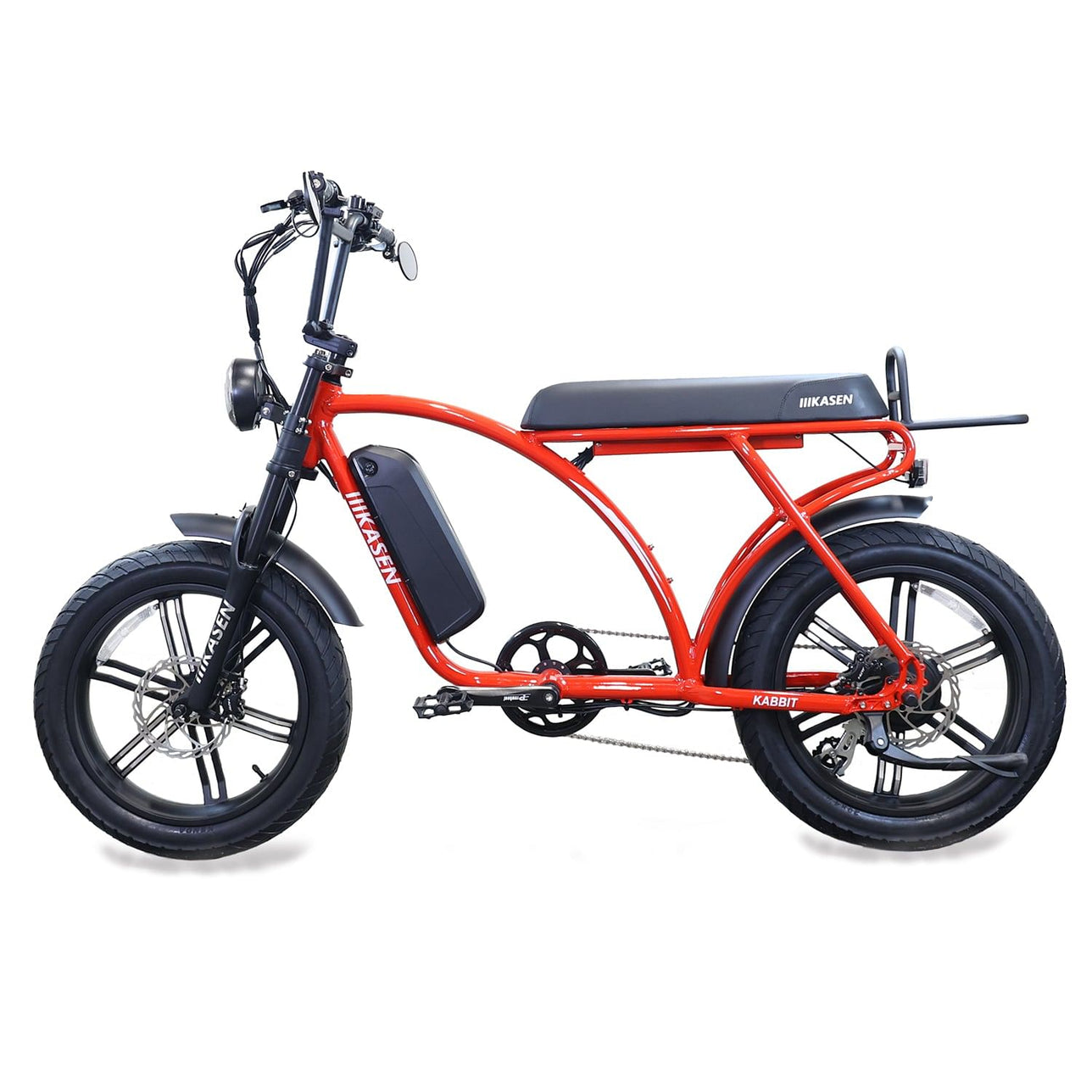

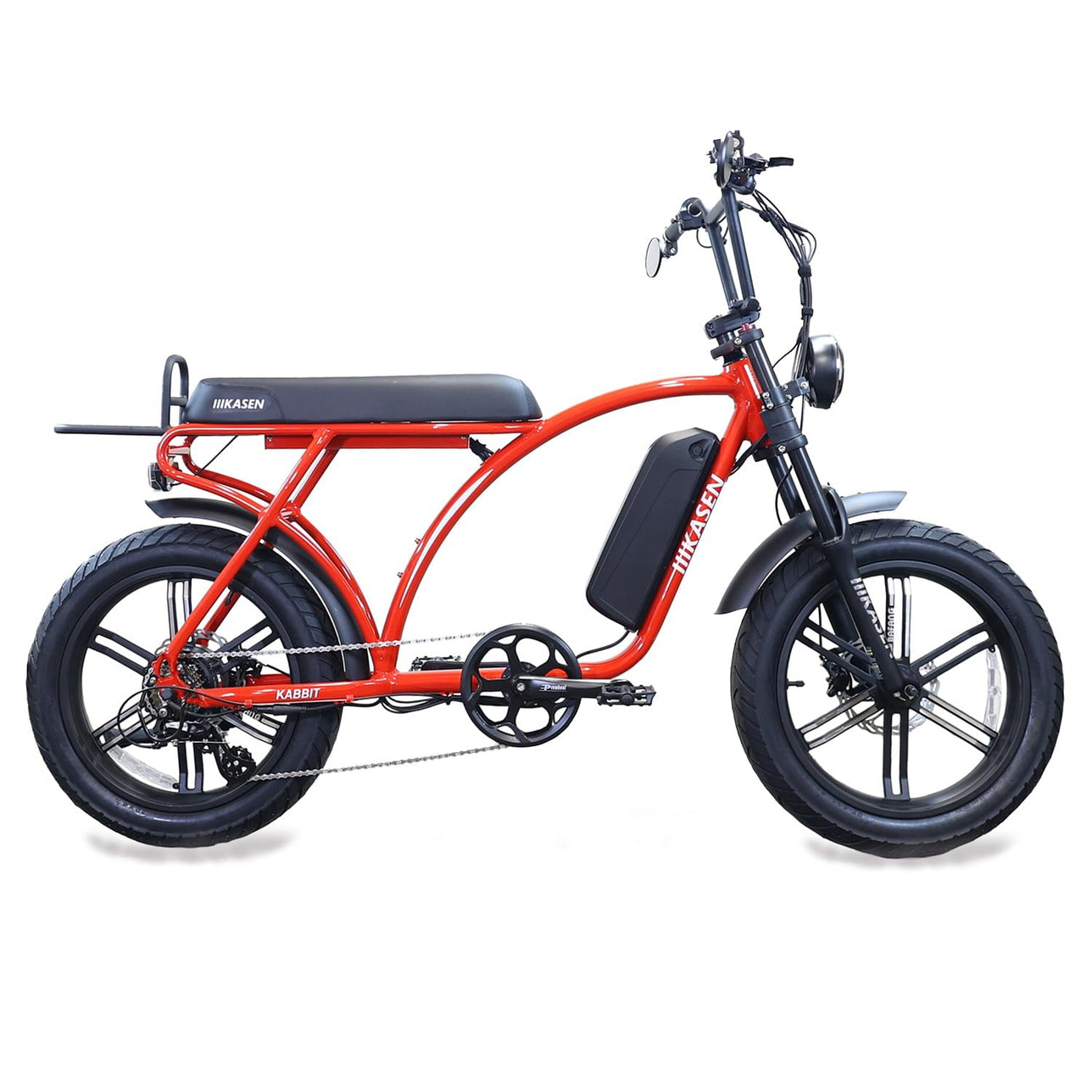

The Kabbit+ is an evolution of the popular Kabbit Classic. We made it faster, lighter, and safer. The integrated lighting system and side mirrors provide an extra measure of safety while you're tearing up the street!

Electric System

• Motor -- Bafang 48V 750w (Nominal) 1200w (Peak)
• Lithium battery -- 48V 14.5ah/17.5ah, Samsung cell
• Pas -- 1:1 intelligent PAS
• Charger -- AC 100V-240V UL
• Charge time -- 4-6 hours
• Throttle -- Thumb throttle on the left
• Display -- APT 500C LCD display
• Head Light -- with

Main Component

• Frame -- 6061 # Aluminum alloy
• Tires -- Kenda, 20x4.0 inch
• Wheel rim -- Aluminum alloy
• Spokes -- Six Spoke aluminum alloy
• Front fork -- MOZO hydraulic suspension, 100mm
• Front brake/rear brake / brake lever -- Tektro E350 hydraulic disc brake with motor power interrupt
• Speed gears -- SHIMANO 7 speed
• Handlebar -- Aluminum alloy

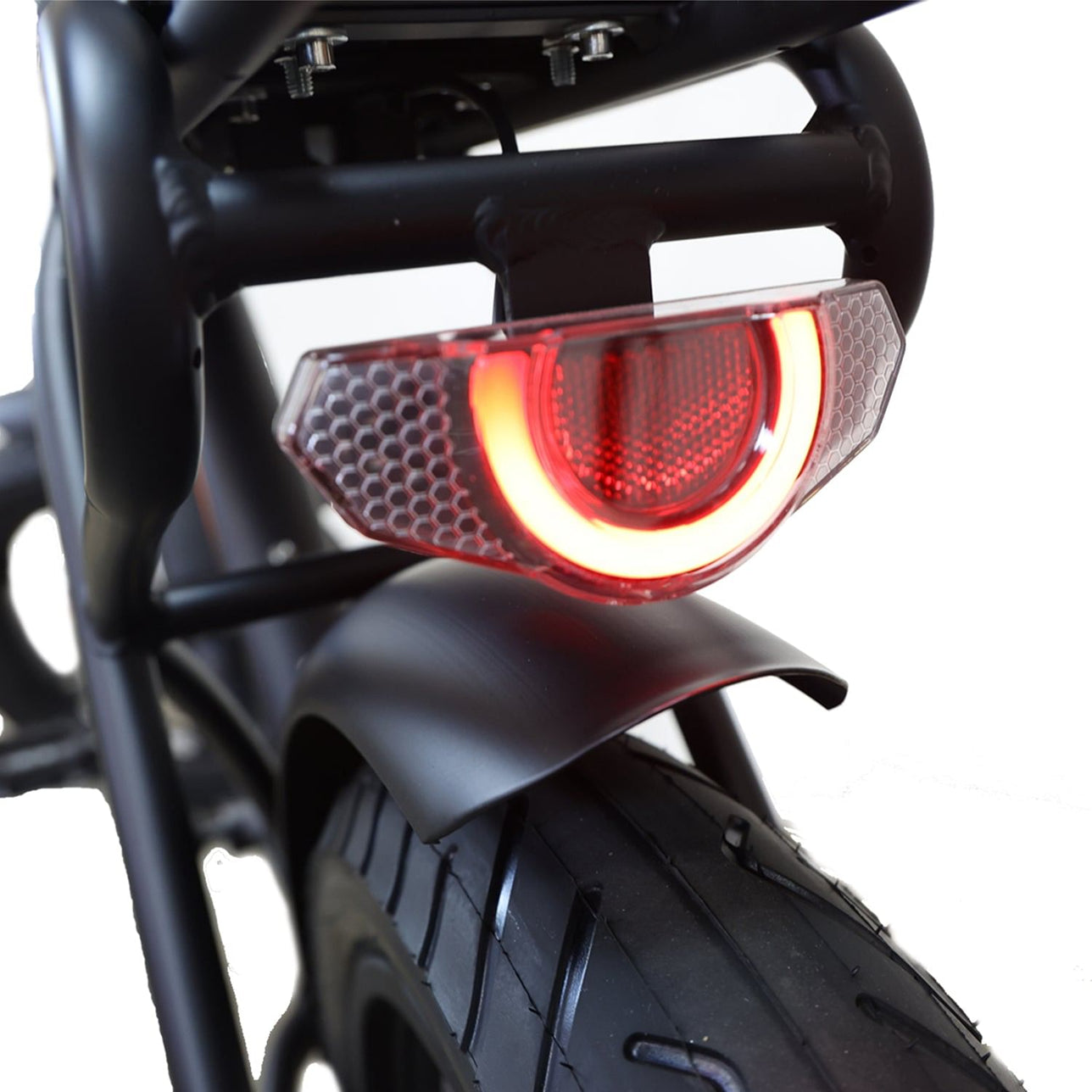

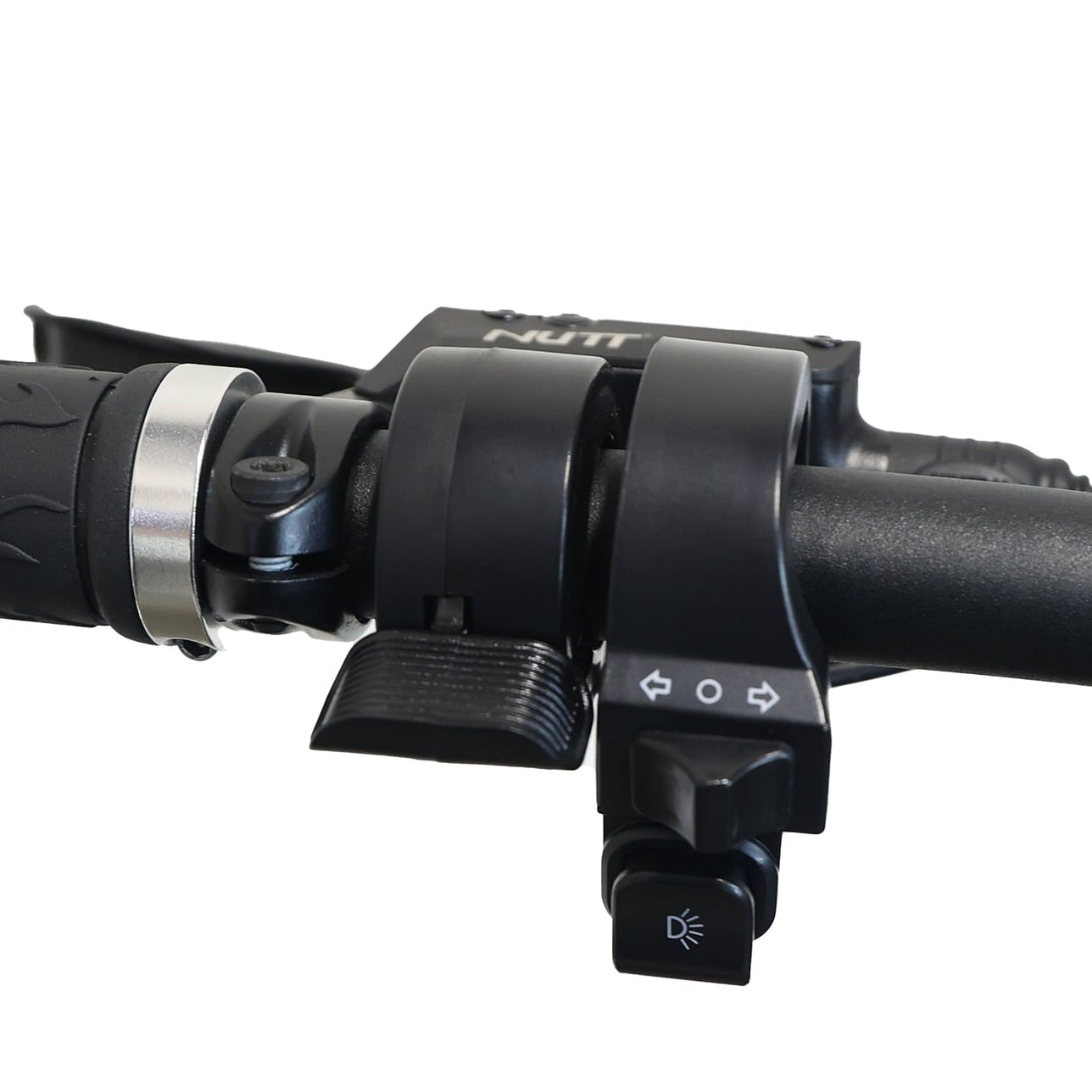

• Integrated Light System -- taillight, brake light, left & right turn indicators

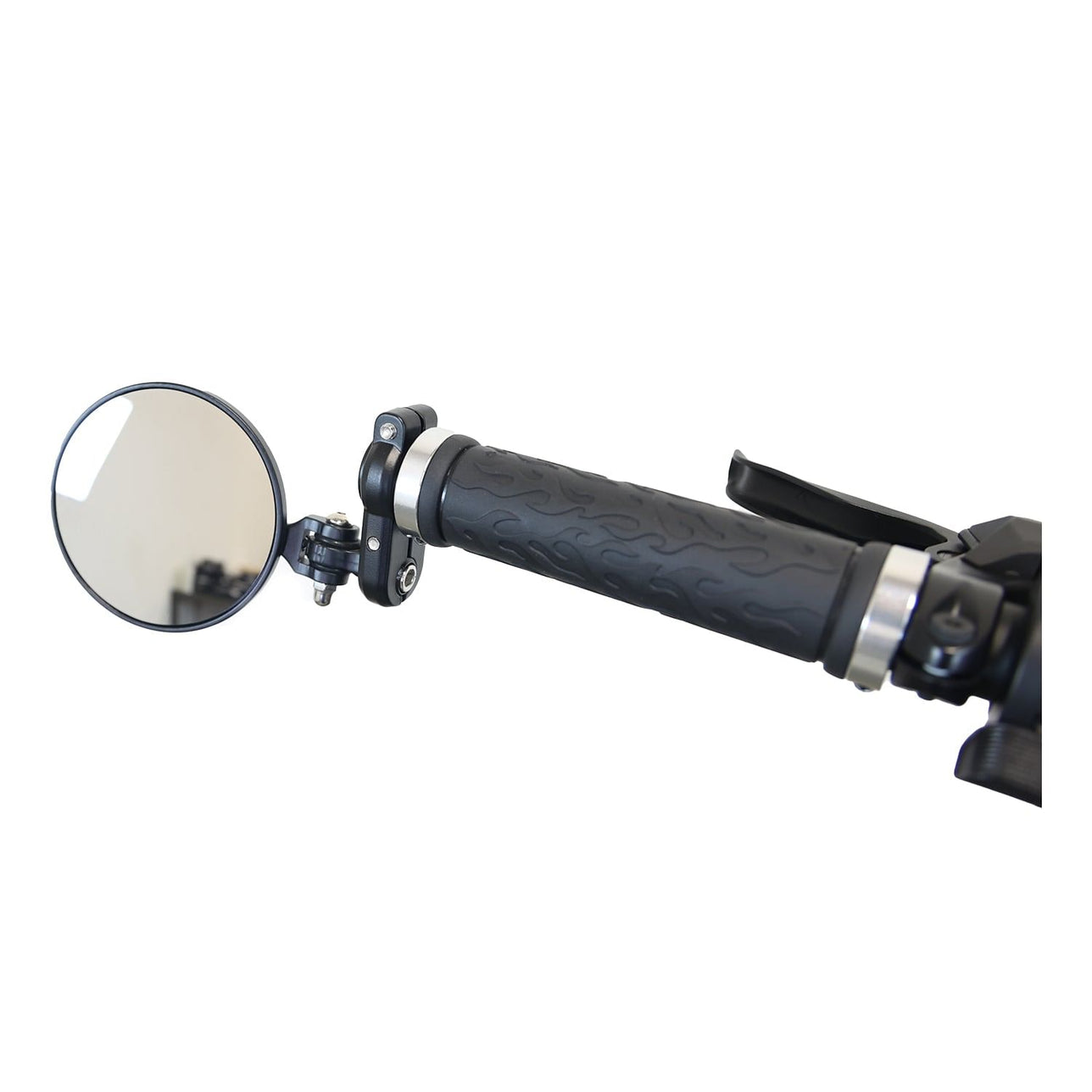

• mirror -- left and right

Performance

• Range -- Up to 50 miles per charge
• Max load -- 280 lbs
• Weight -- 86 lbs
• Capacity -- 75 pcs/20ft, 162 pcs.40GP
• Box Dimension: 60''x12''x33''
• Gross Weight: 102 lbs

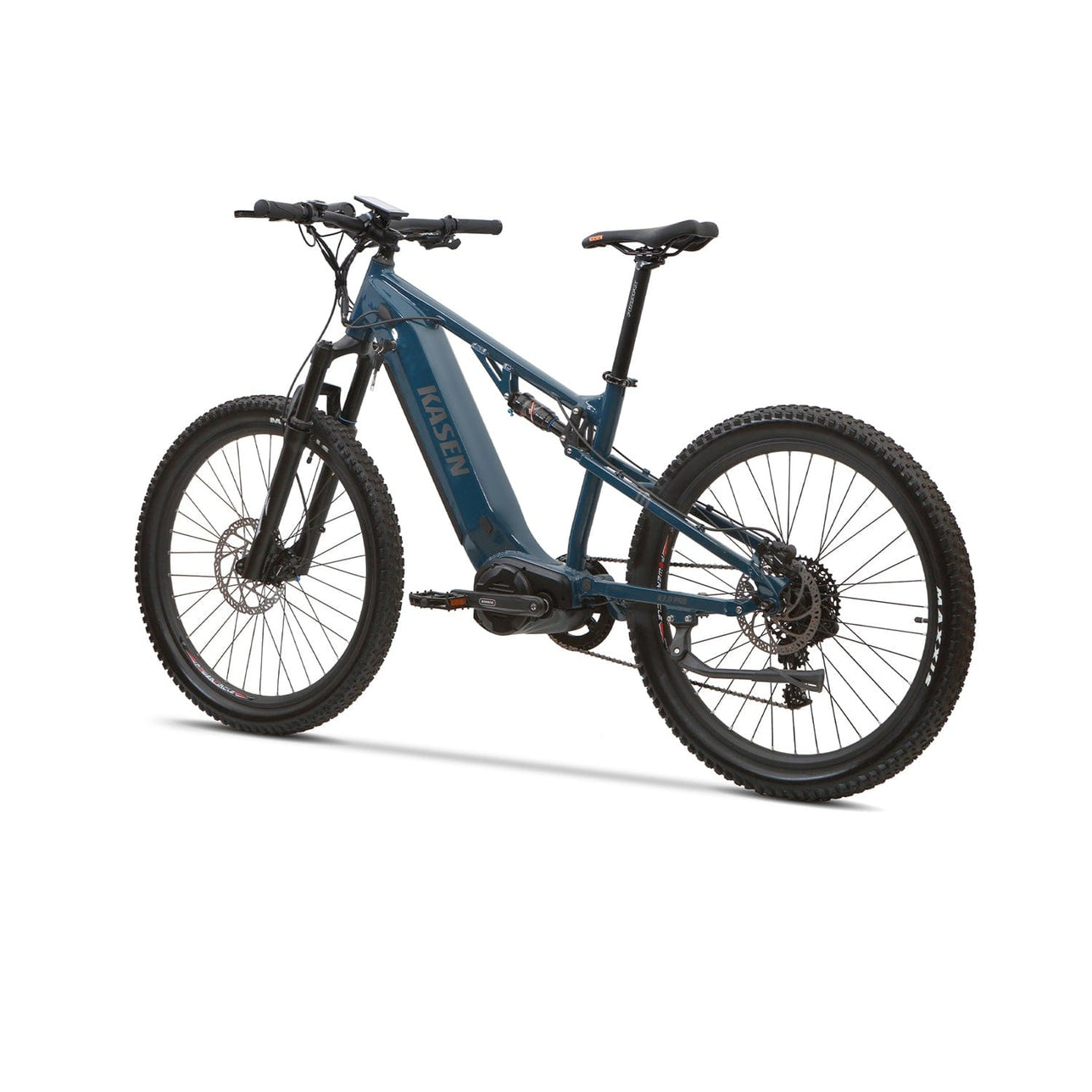

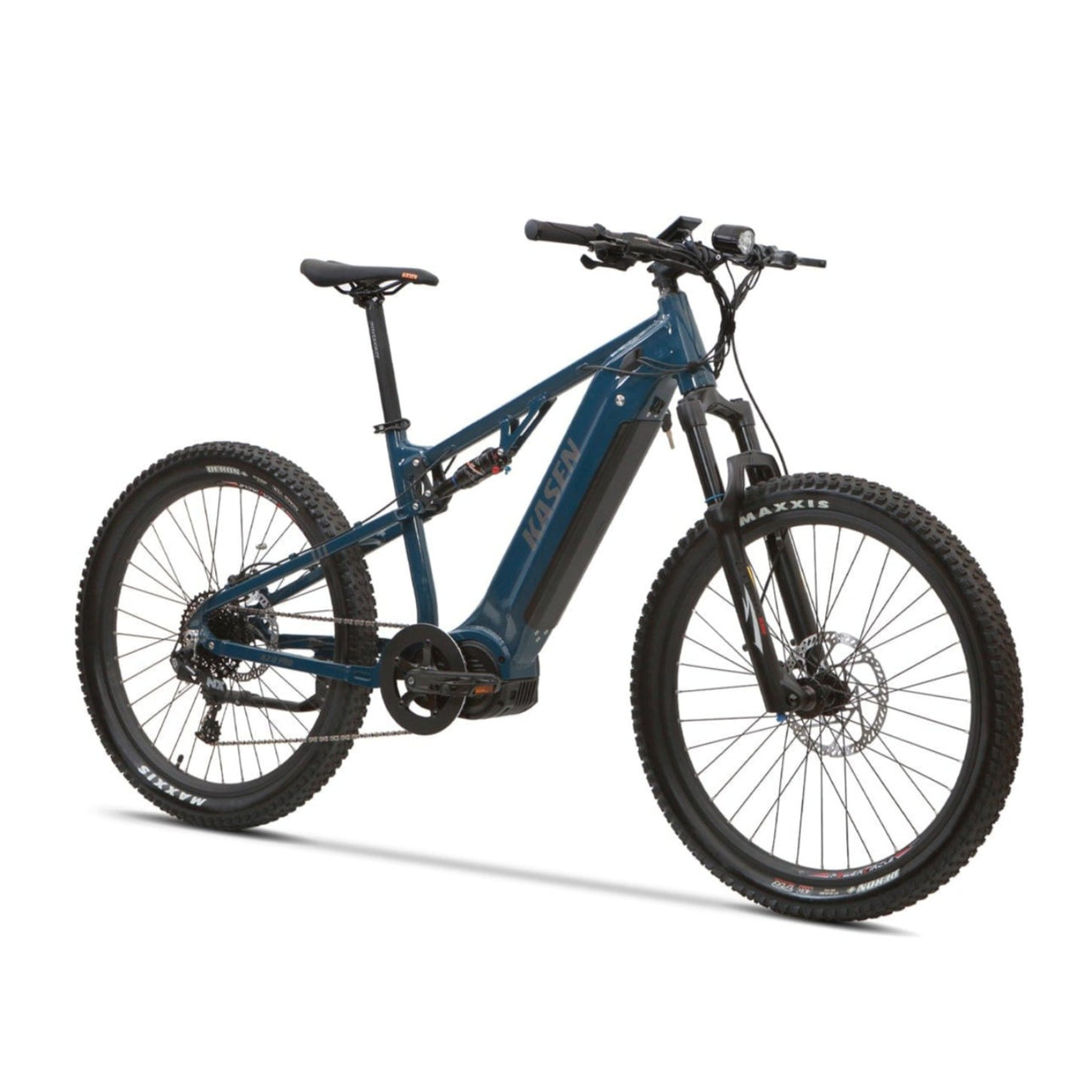

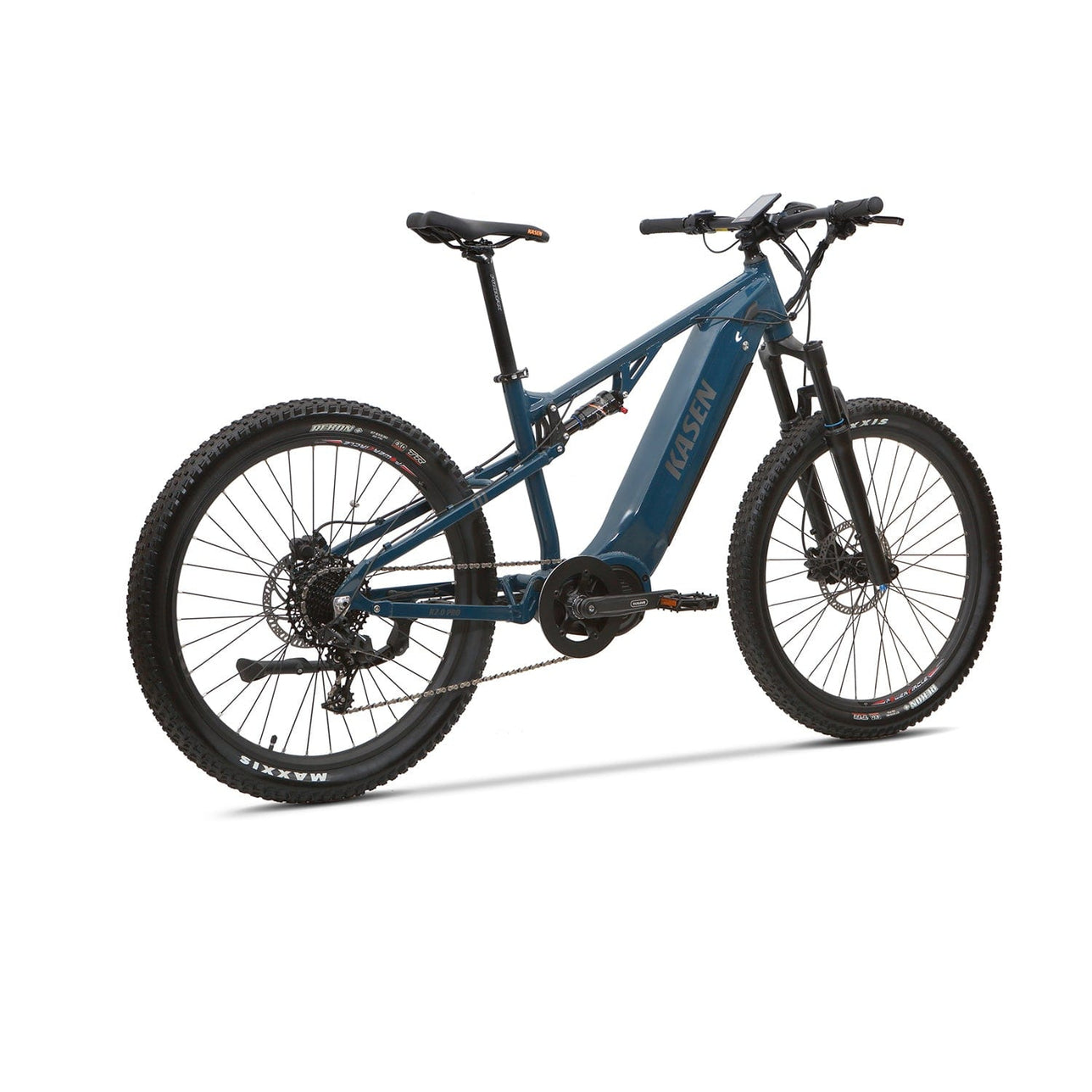

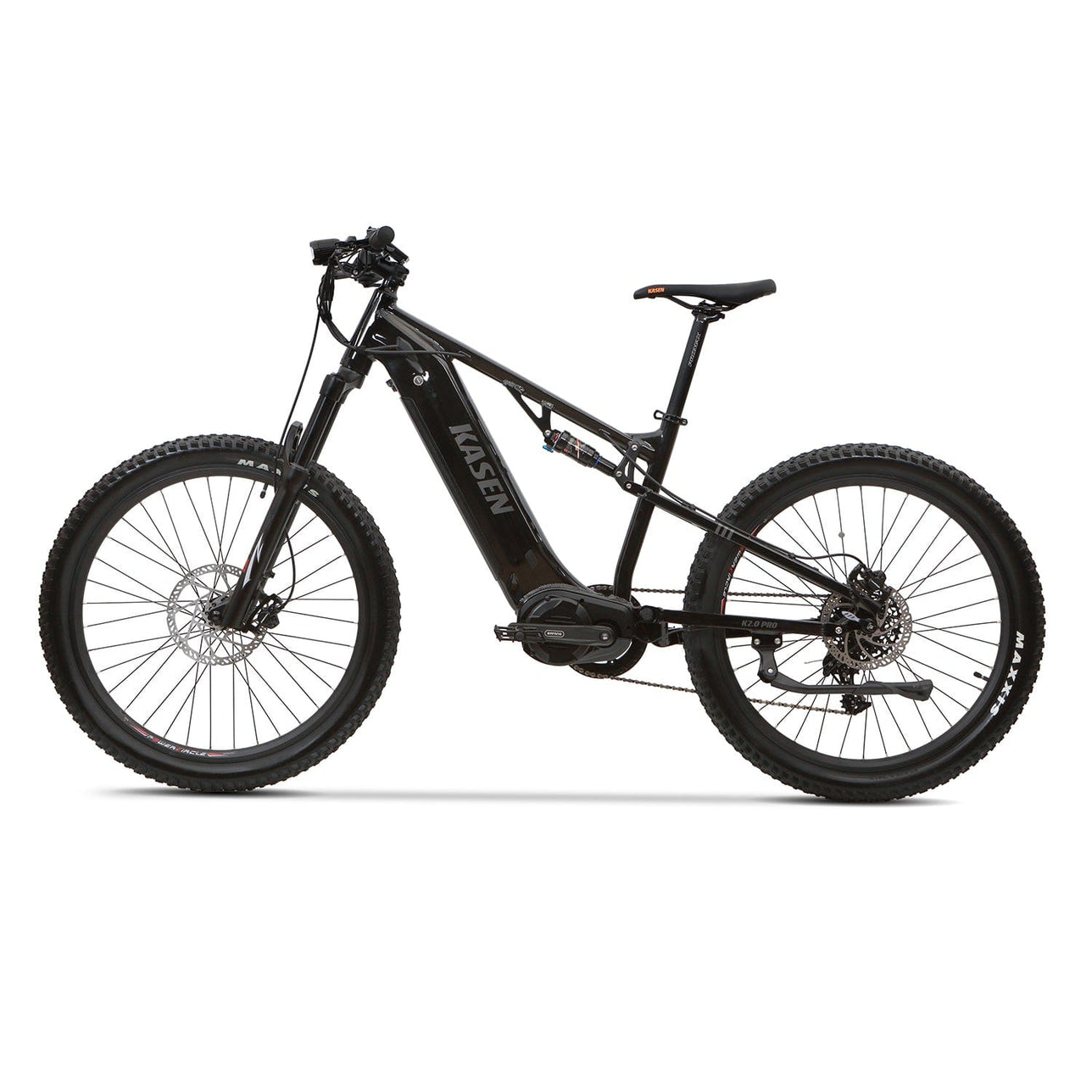

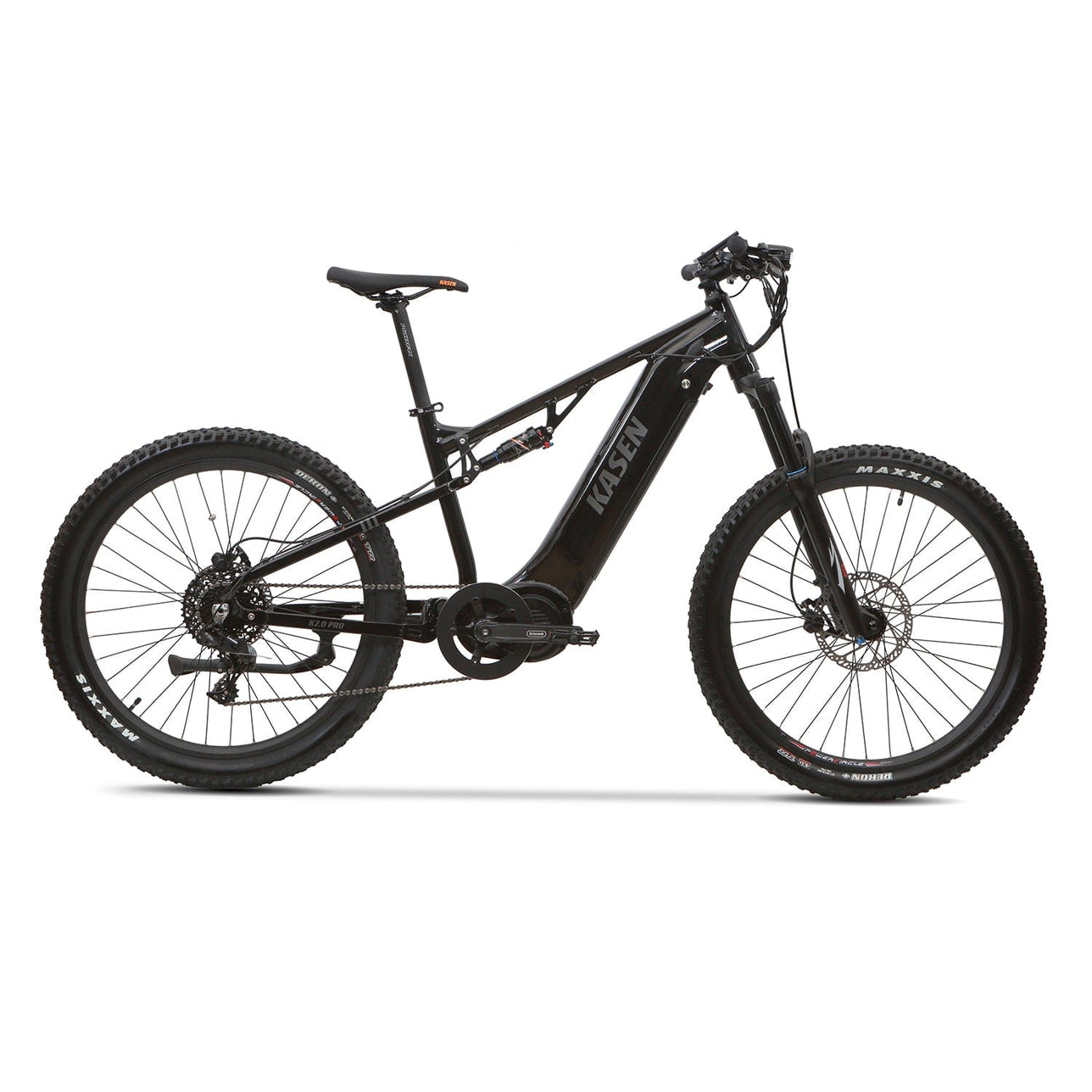

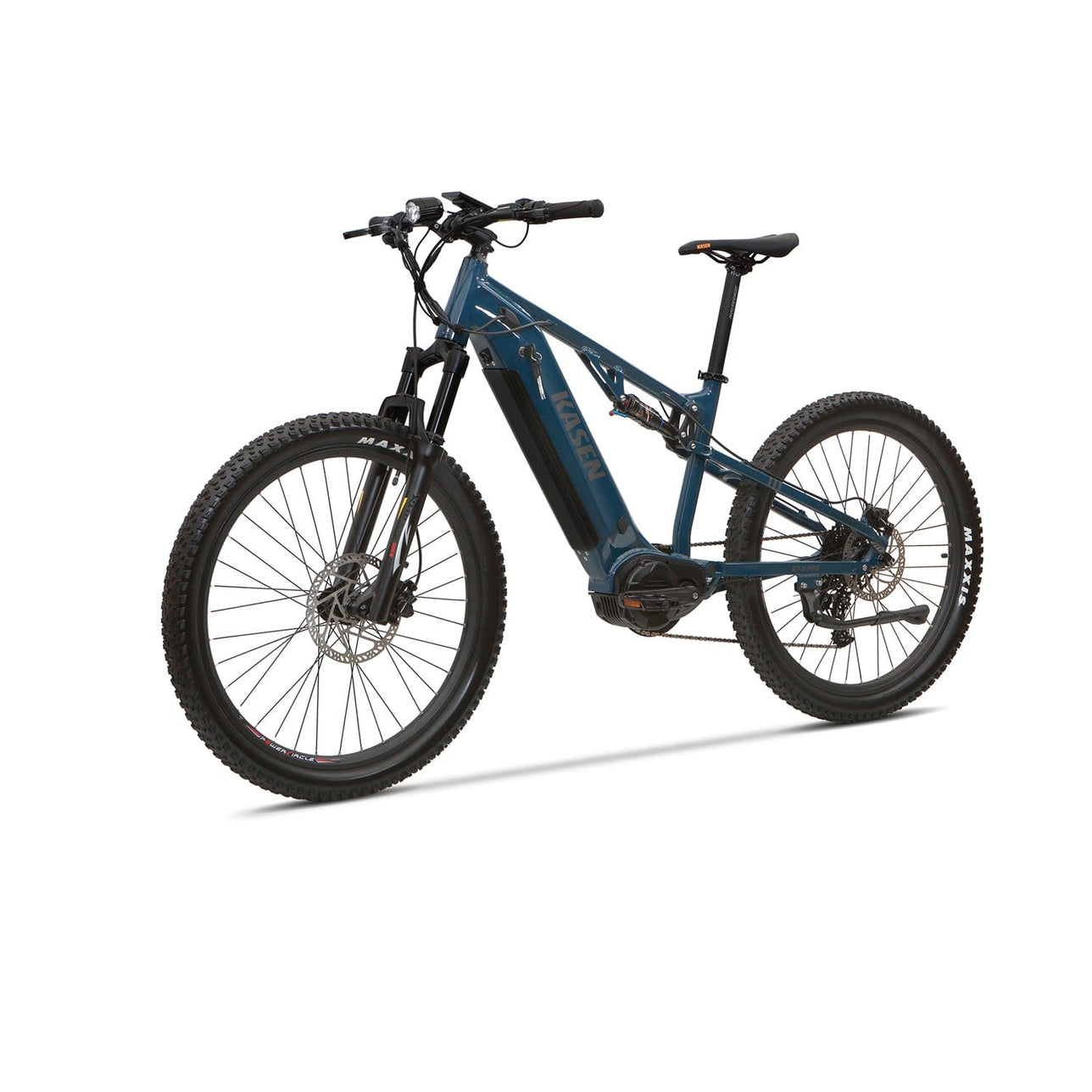

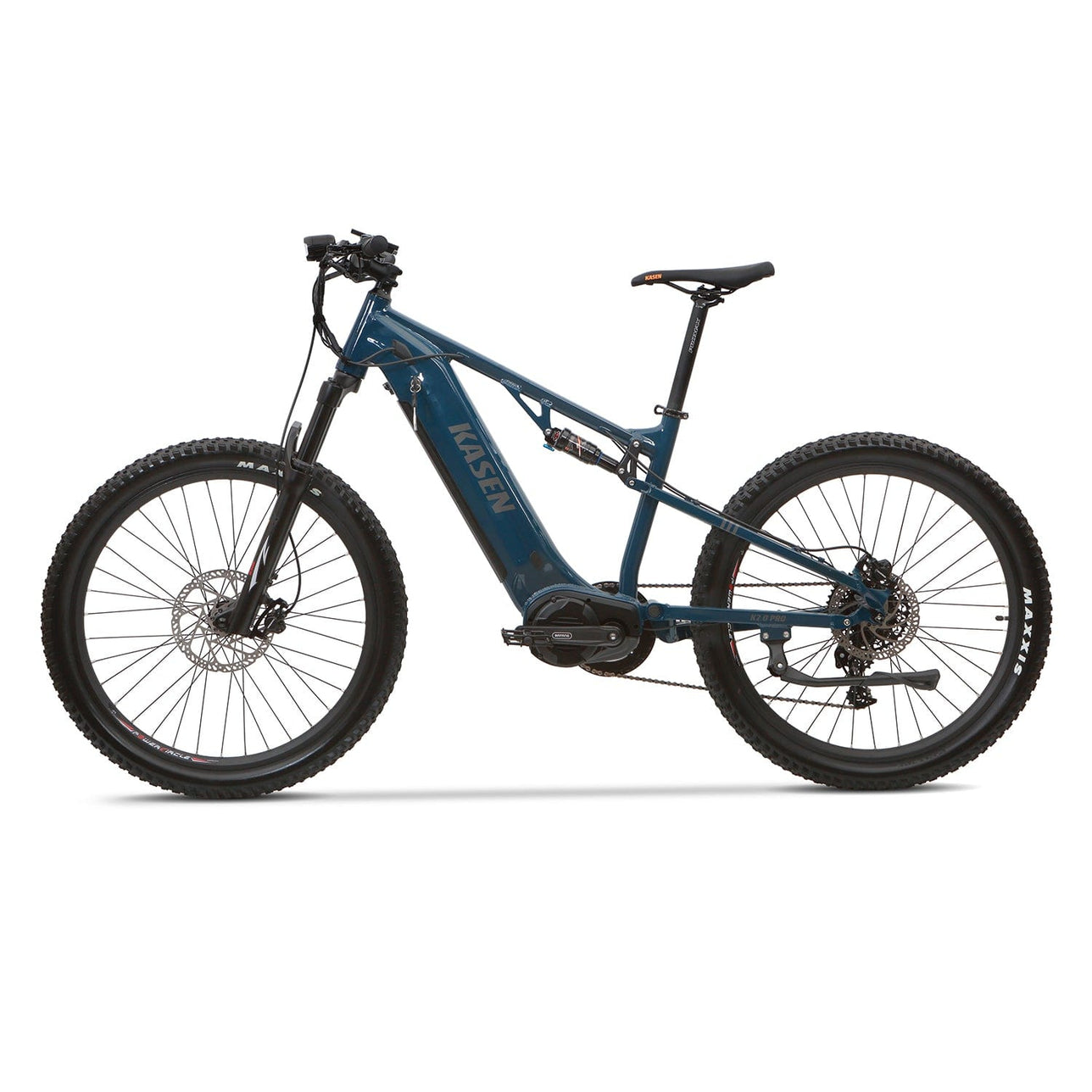

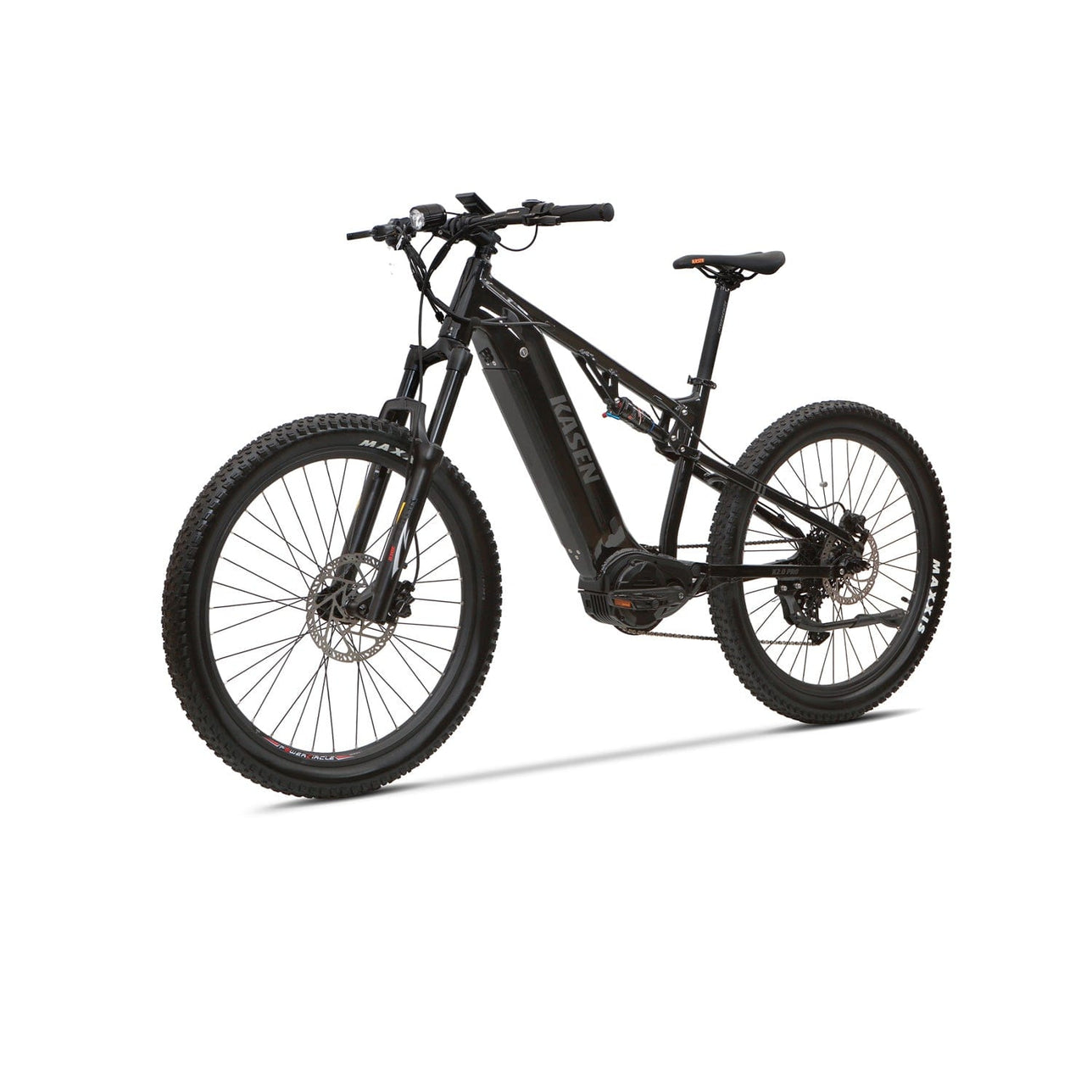

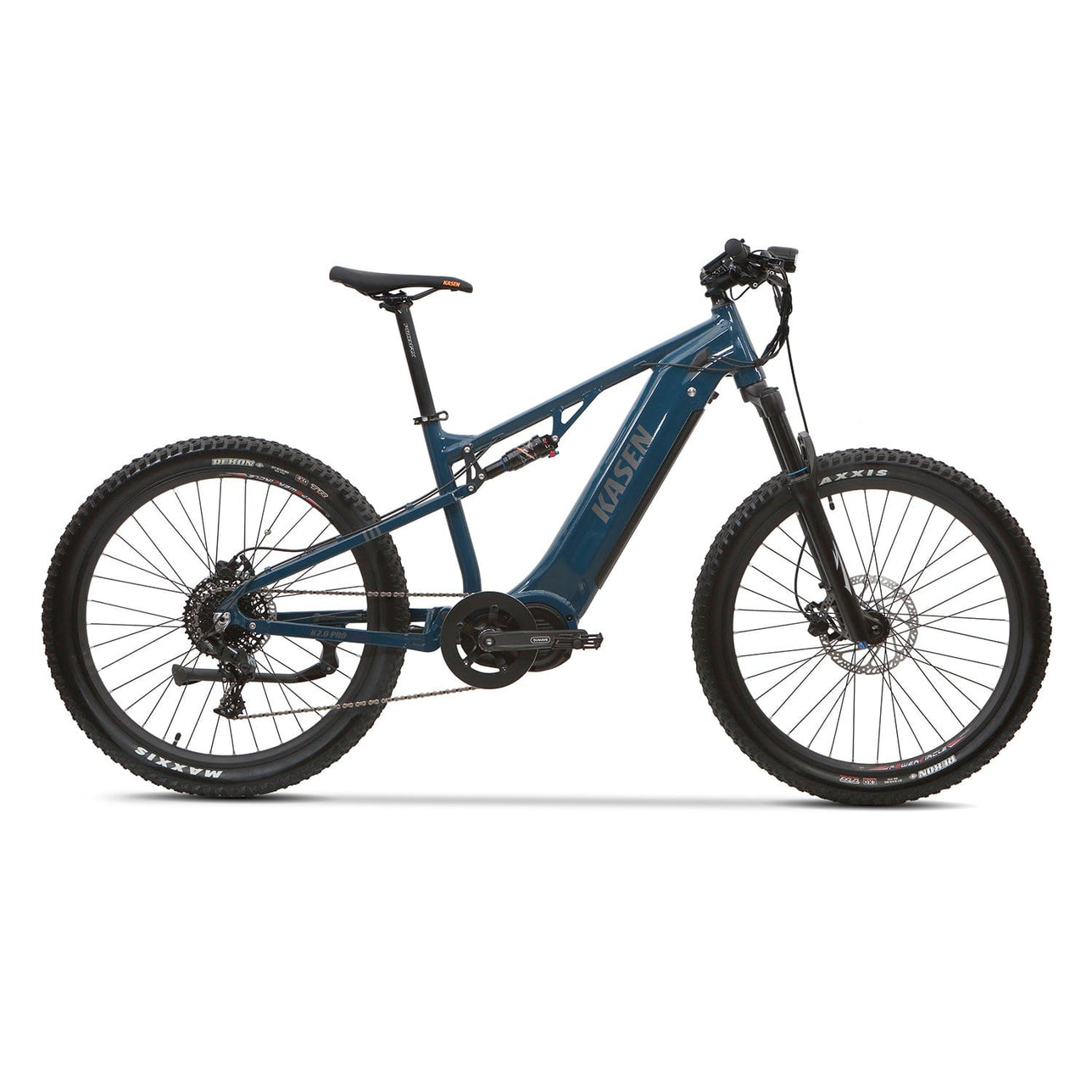

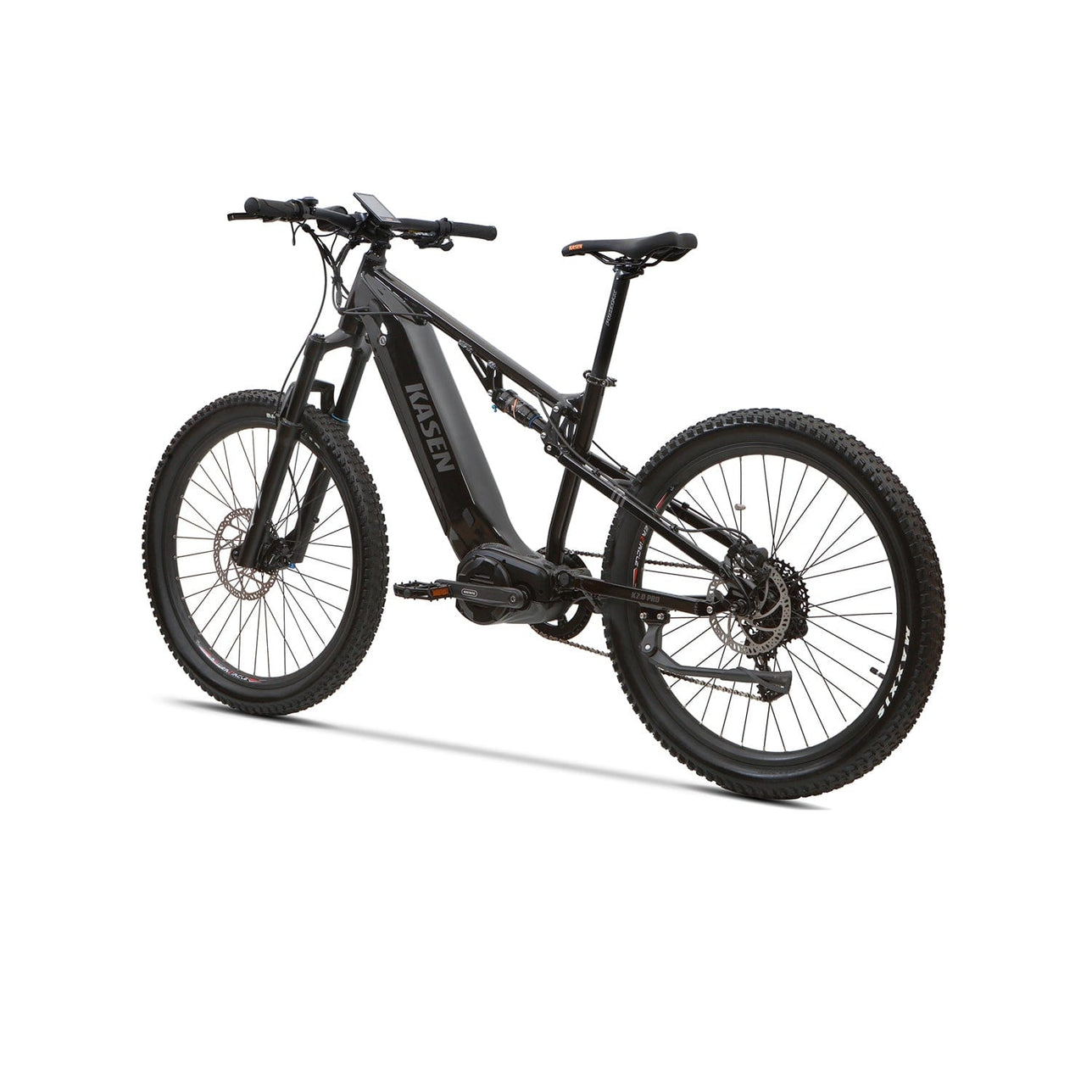

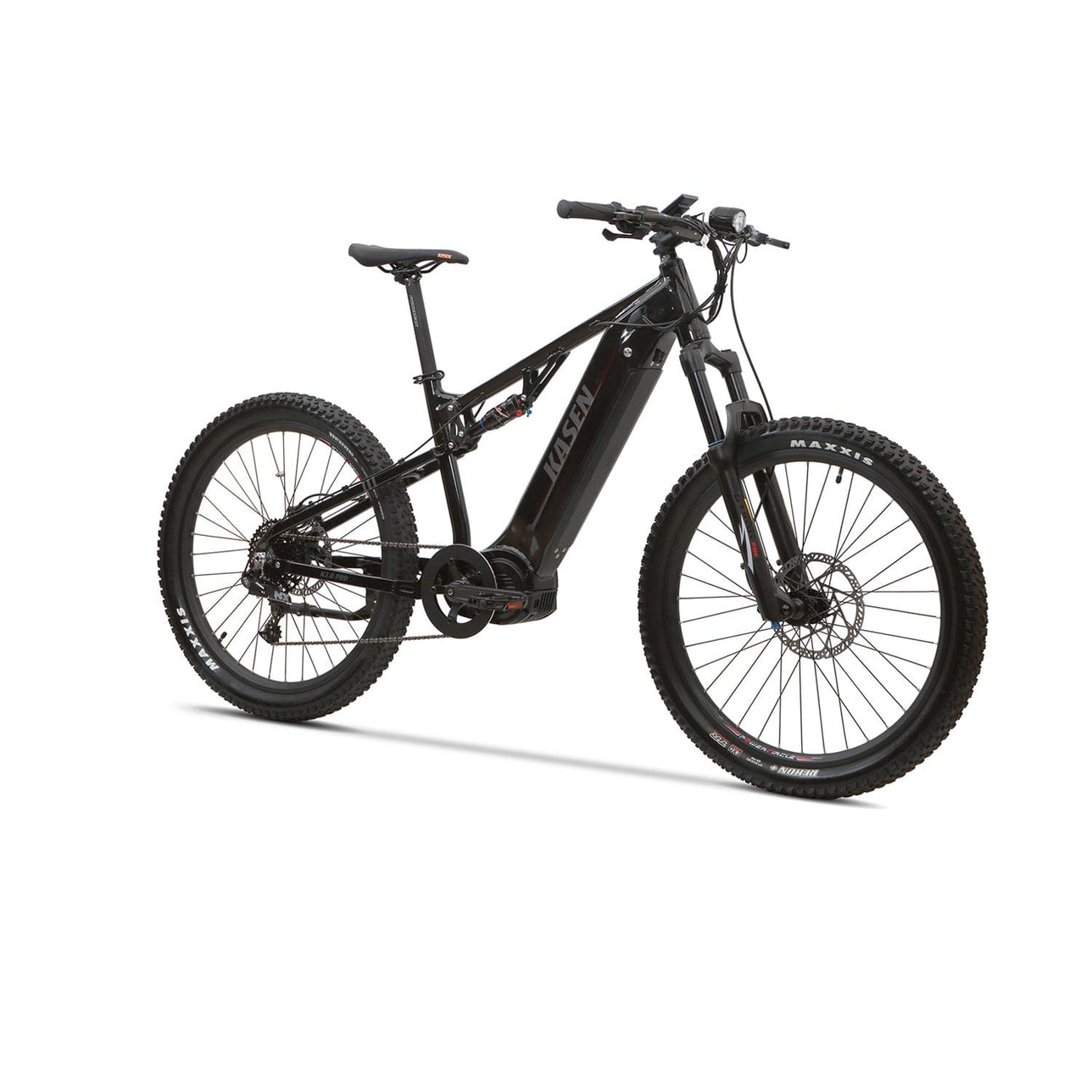

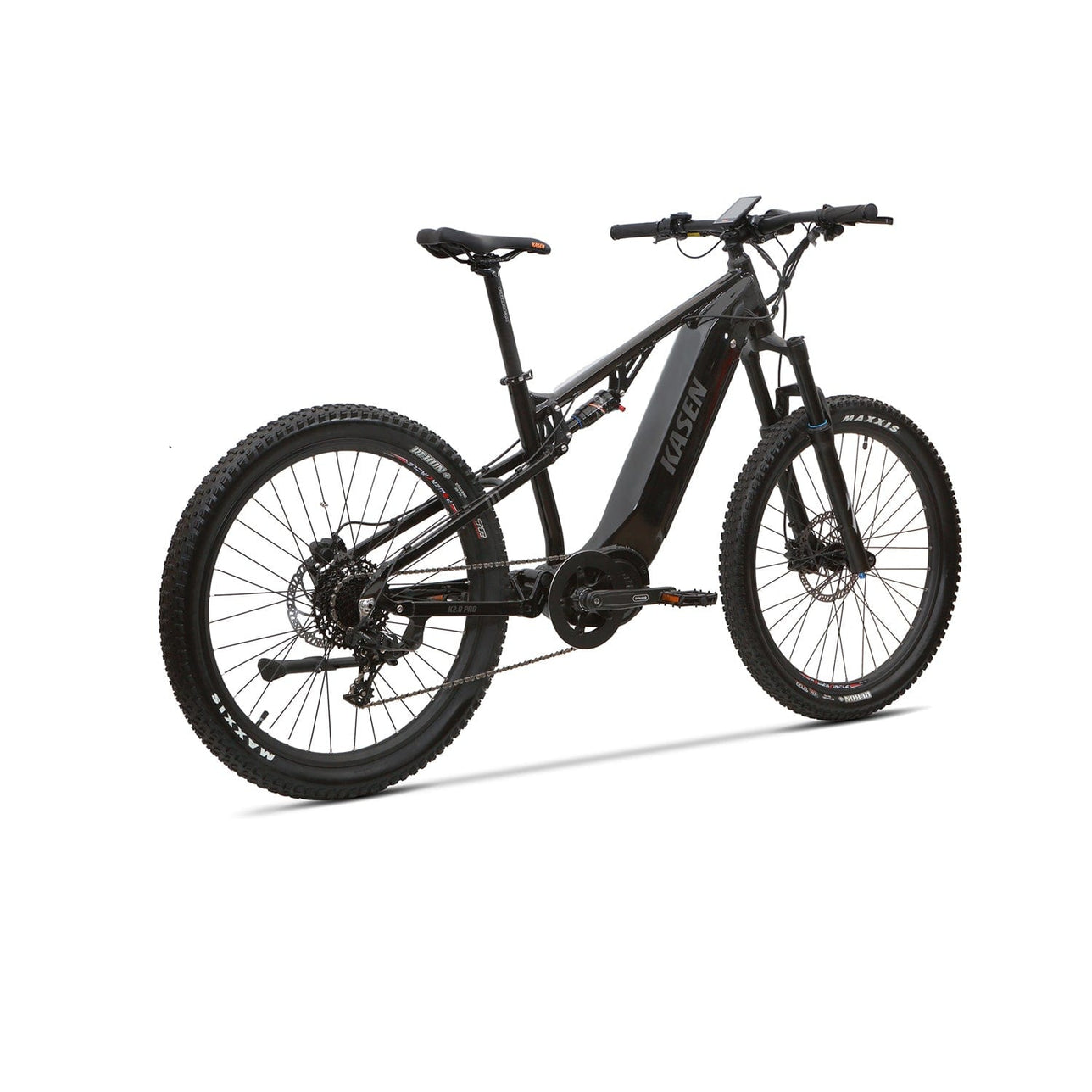

PERFORMANCE

FRAME  6061 Double-Butted Aluminum Alloy with Internal Battery

MOTOR  BaFang M620 (Mid-Mounted Geared Motor MM G510.1000.C)

               1500W (Peak) 1000W (Sustained)

SPEED   Up to 35 MPH on Pedal Assist and 35 MPH on Throttle

RANGE  45-55 Miles per charge (estimate)

BATTERY Removable Internal Lithium-ion

                  48V 15AH (720WH) /20AH (960WH) SAMSUNG

DISPLAY  BAFANG DP C18.UART LCD Display

CHARGER 48V 3.0 Amp Smart Charger, 4-6 Hour Charge Time

ELECTRIC SYSTEM

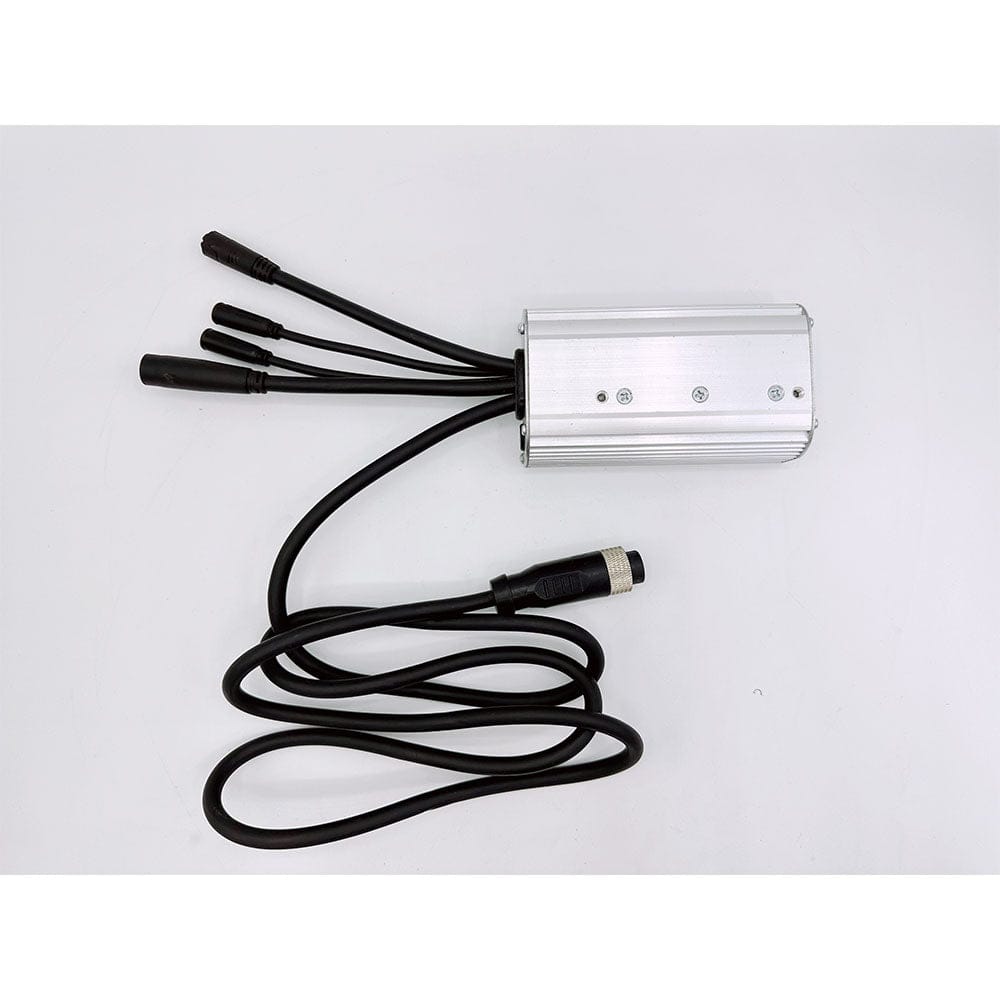

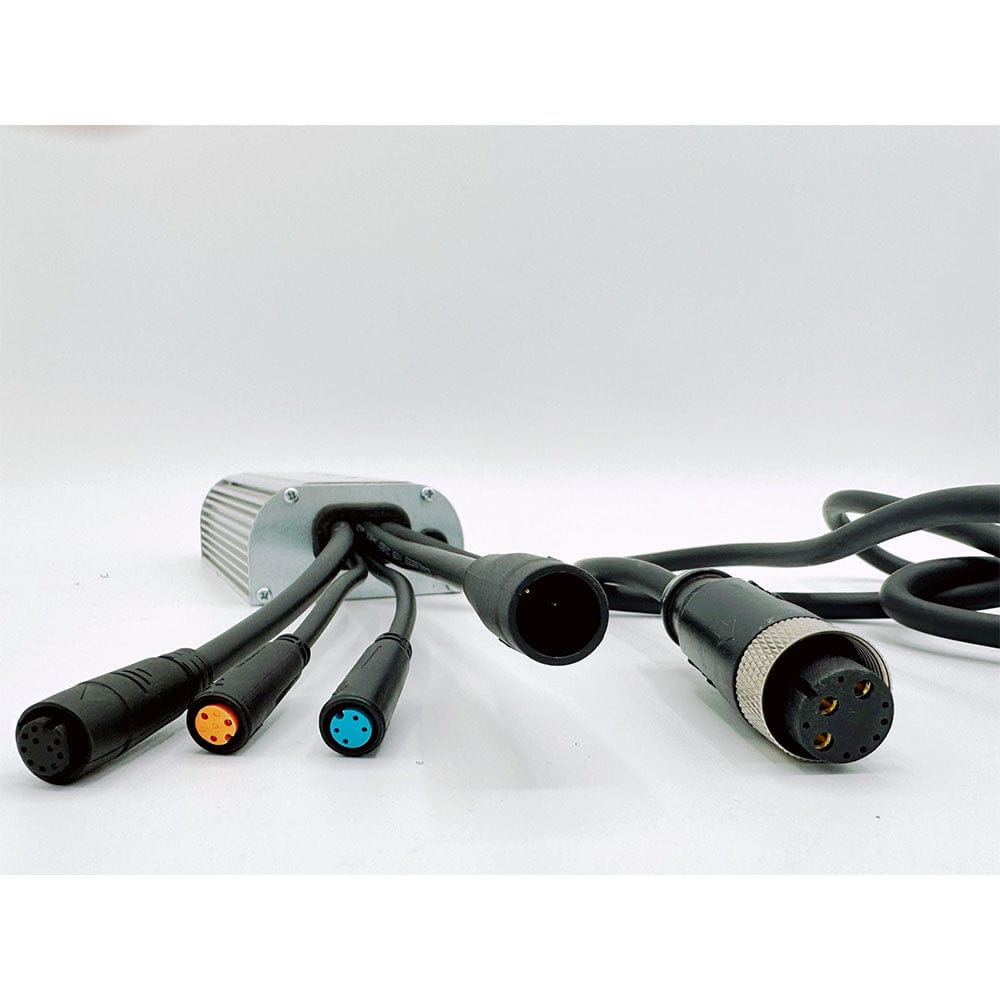

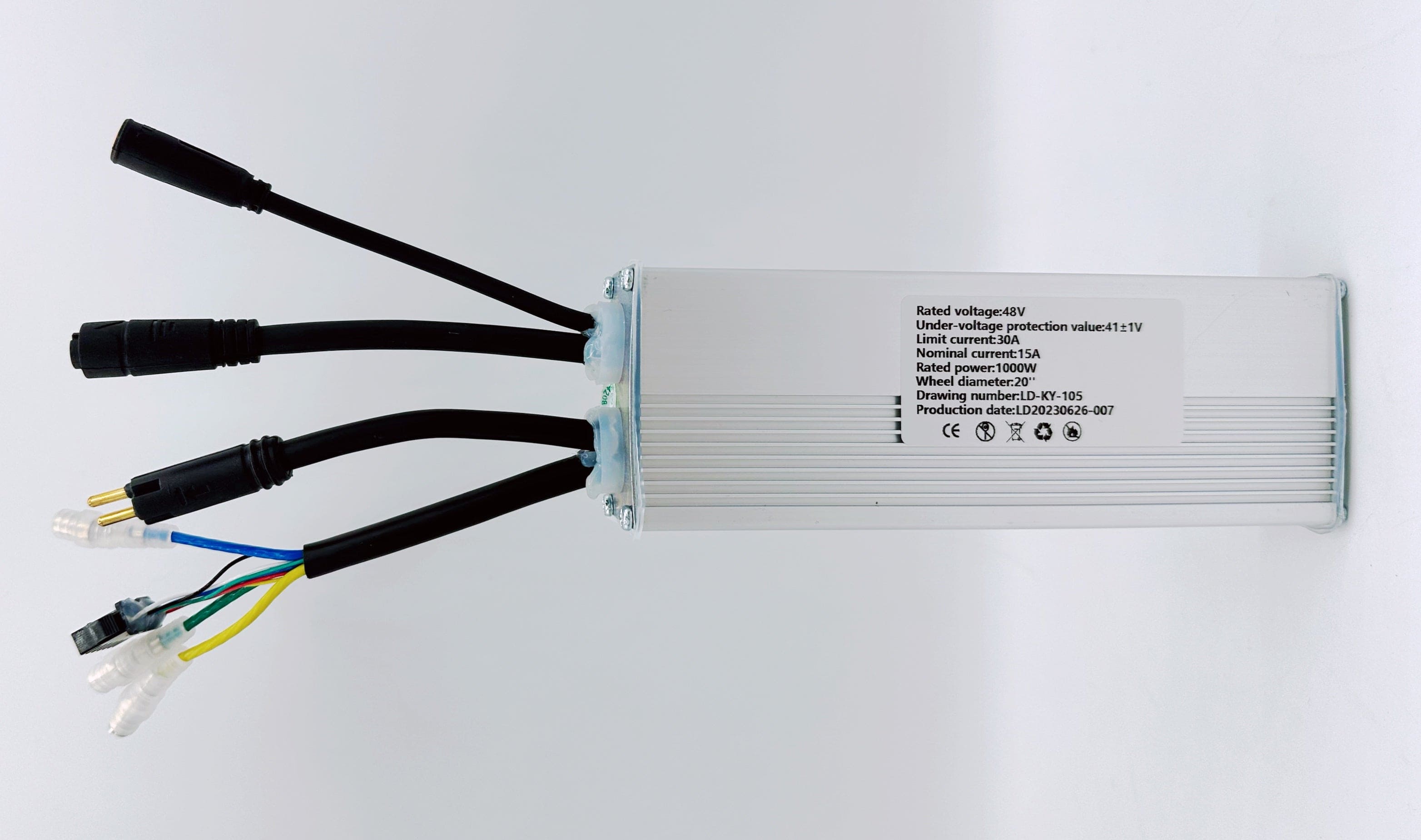

CONTROLLER 48V, 1000W Frame-integrated Controller

THROTTLE Thumb Throttle

PEDAL ASSIST Intelligent 5 level Pedal assist with Speed and Torque Integrated

Wiring Water resistant connectors and wiring harness

HEADLIGHT High output 100 LUX LED Headlight

TAILLIGHT Red LED

COMPONENTS

FORK  CTMRK 830E Air Suspension Fork, Boost110, 140mm Travel

            Hydraulic lock out with rebound adjustable

SHOCK  DNM AO-38RC 165X35mm

BRAKE Tektro Hydraulic Disc Brake

             Tektro HD-E350 203mm Front & 180mm Rear Disc Brake

WEIGHT LIMIT Maximum Payload Capacity : 275lbs

WEIGHT 70 LBS

SHIFT SRAM 11 Speed NX Series

CRANKSET 40T 170mm Crankset

CASSETTE SRAM 11T-42T Cassette

CHAIN KMC Rust Resistrant Chain

HANDLEBARS Promax Aluminum 31.8mm, 750mm Back Sweep 6 Degree

GRIPS Velo Durable ergonomic grips

STEM Promax Aluminum Alloy, 60mm Length, 31.8mm

RIM Double Wall Aluminum 36h Front & Rear

TIRES  MAXXIS 27.5X2.8 CST

SEATPOST Aluminum Alloy 31.6mm 300L

SEAT CLAMP Quick Release

SADDLE KASEN

PEDALS Wellgo Aluminum Alloy Pedals

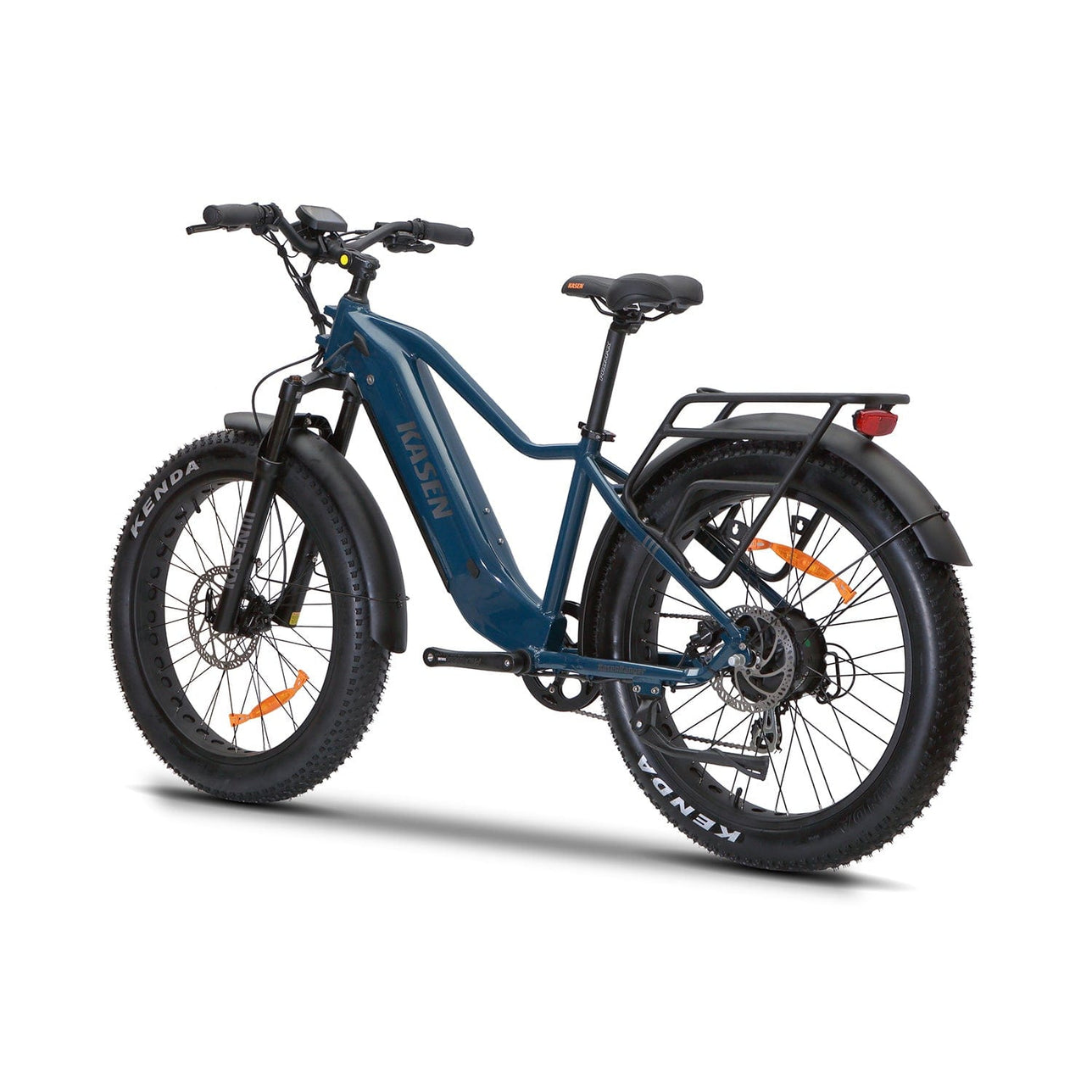

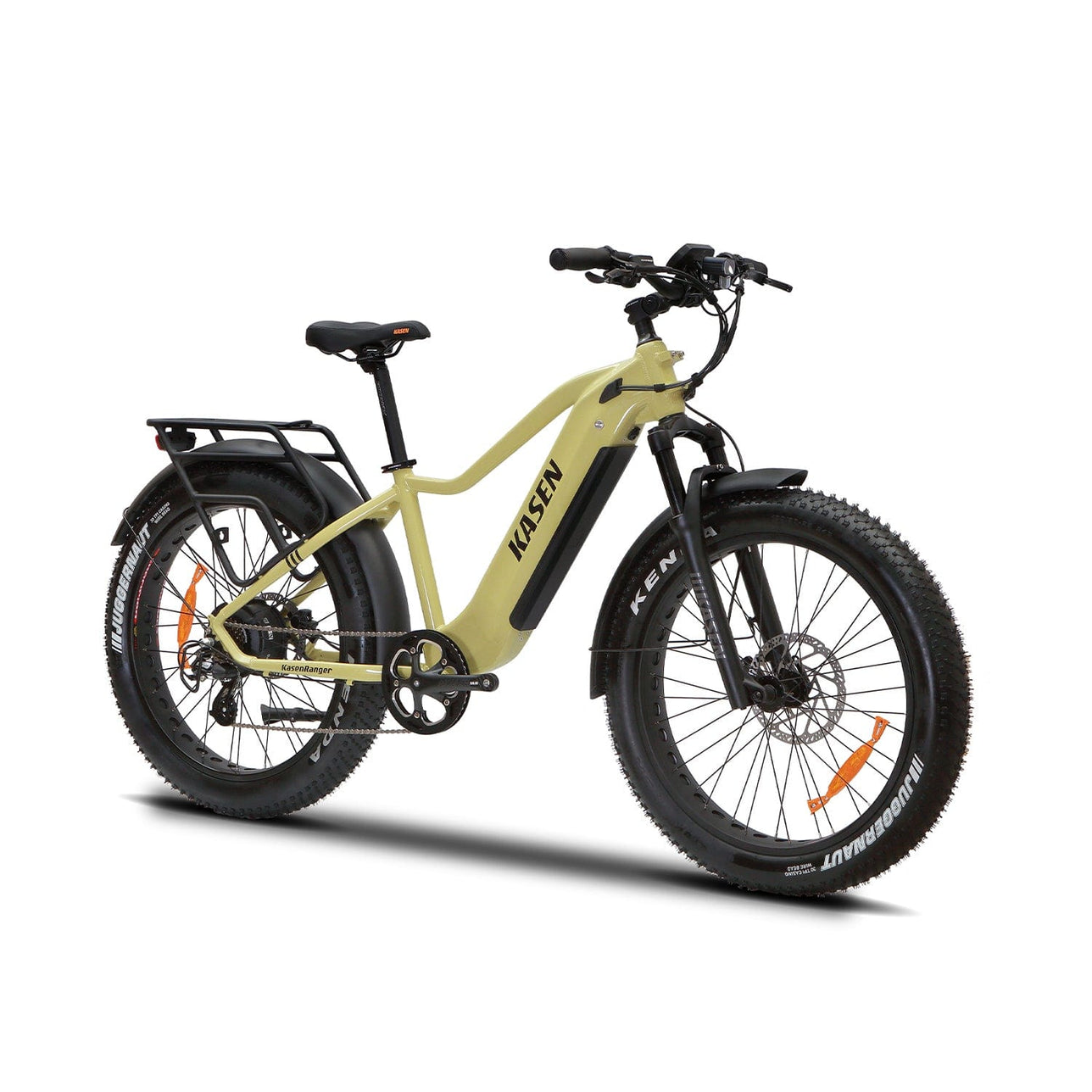

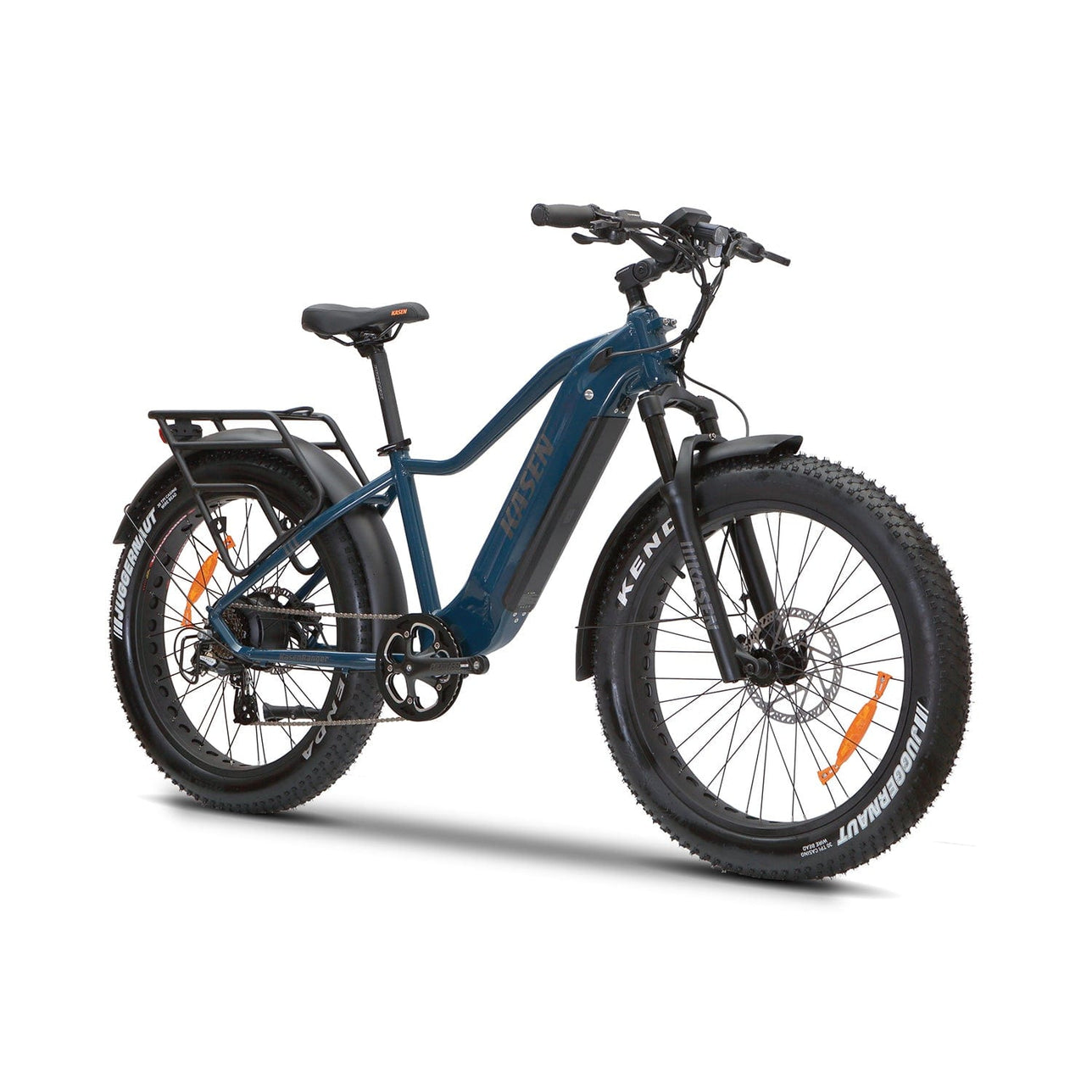

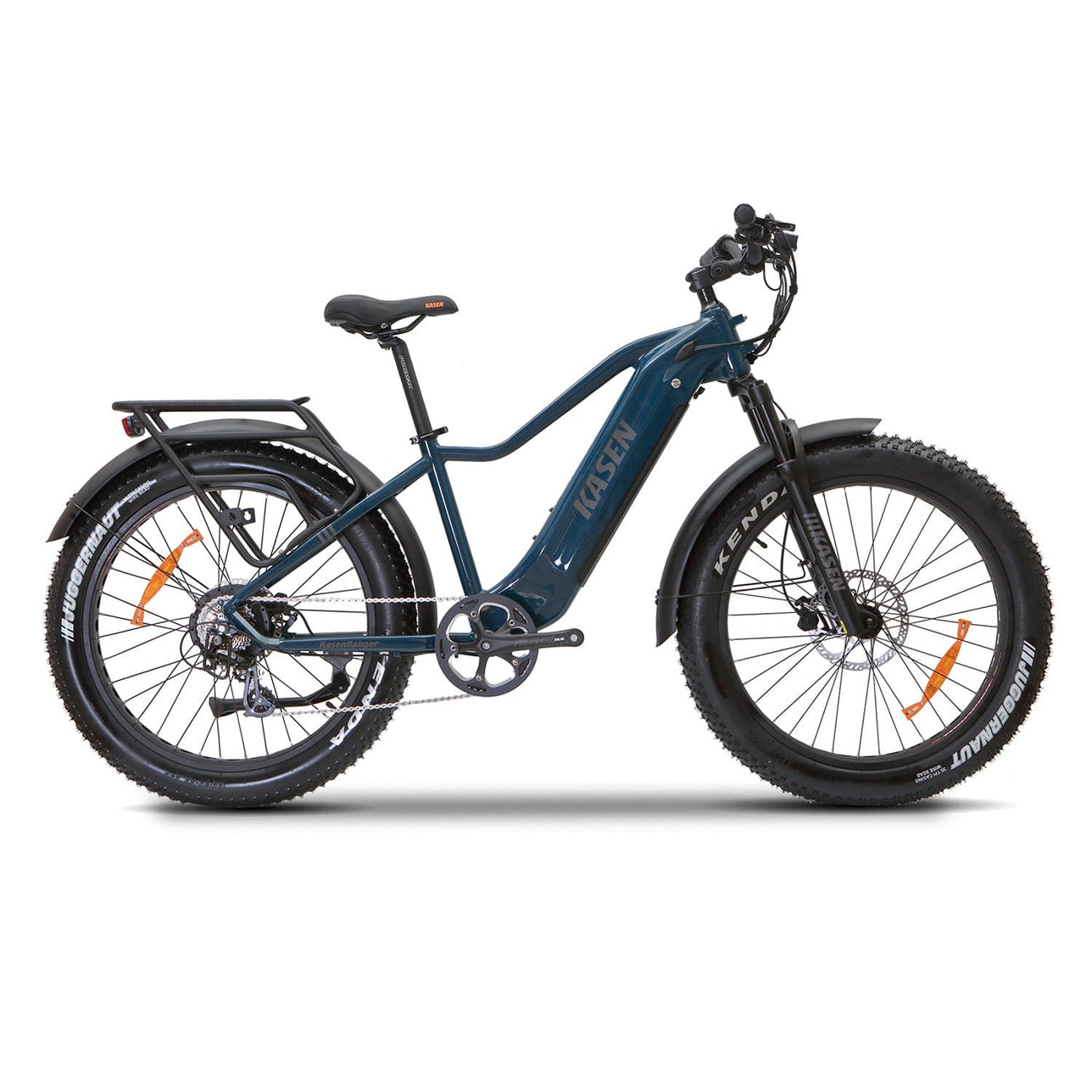

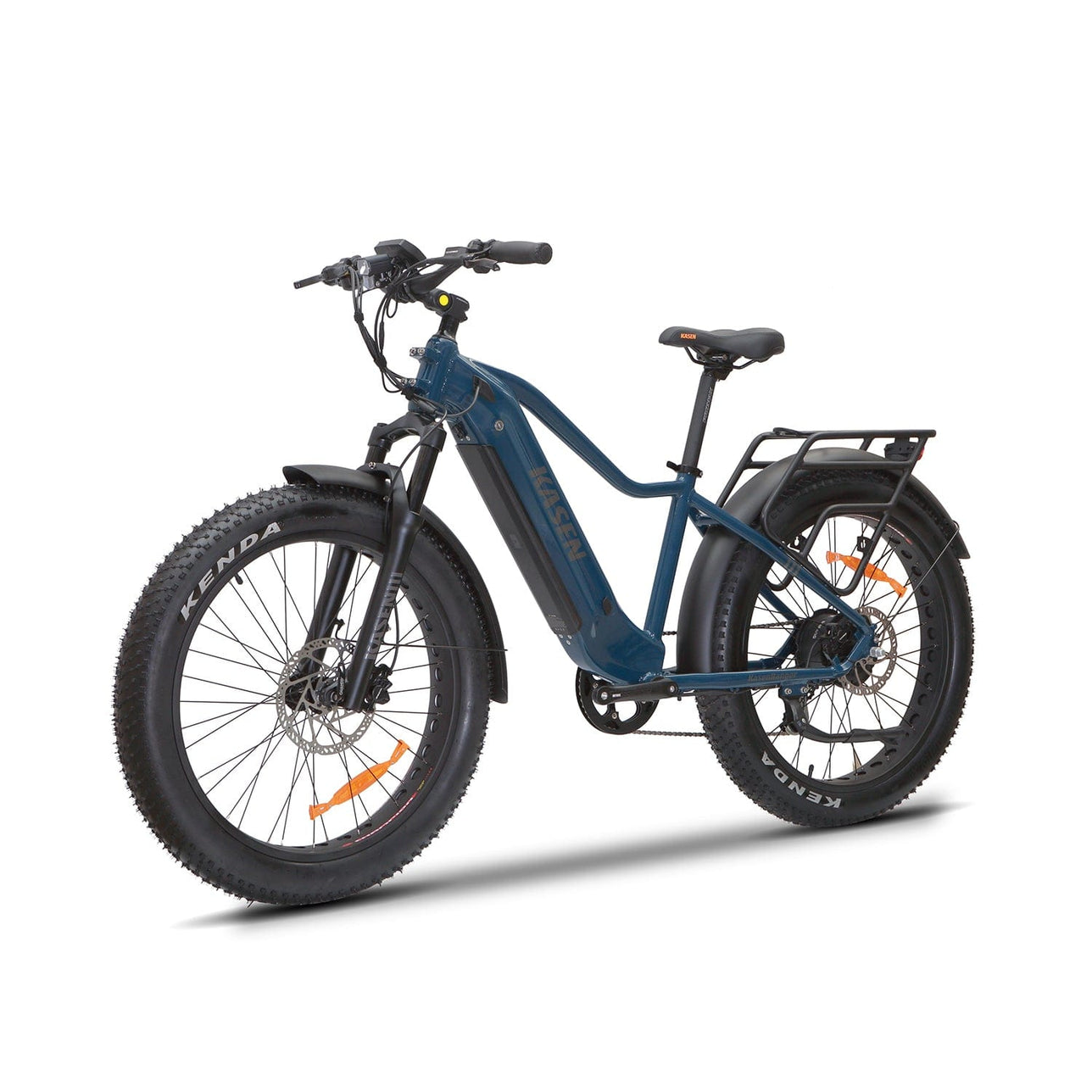

• MOTOR  1250W (Peak) 1000W (Sustained), 48V Brushless Rear Hub BAFANG Motor
• BATTERY Removable Internal Lithium-ion 48V ,15AH (720WH)/20AH (960WH) SAMSUNG
• CHARGER 48V 3.0 Amp Smart Charger, 4-7 Hour Charge Time
• DISPLAY CloudDrive CDC6-PR02 Backlit LCD Display with USB
• CONTROLLER 48V, 1000W Frame-integrated Controller
• THROTTLE Thumb Throttle
• PEDAL ASSIST Intelligent 5 level pedal assist with 24 magnet cadence sensor
• Head Light  High output 80 LUX LED Headlight
• Wiring Water resistant connectors and wiring harness

• FRAME 6061 Double-Butted Aluminum Alloy with Internal Battery
• FORK Hydraulic Fork, 100mm Travel, with lockout and preload adjustment
• BRAKE Tektro 203mm Front & 180mm Rear Hydraulic Disc Brake
• SPEED GEARS Shimano 7 Speed Shifter
• CASSETTE Shimano 14T-28T Cassette
• CHAIN WHEEL KMC Rust Resistrant Chain
• CRANKSET Prowheeel 46T 175mm Crankset
• HANDLEBARS  Aluminum 31.8mm, 700mm Back Sweep 6 Degree
• GRIPS Durable Ergonomic Grips
• STEM Aluminum Alloy, 0-60 Degree Rise, 108mm Length, 31.8mm
• WHEEL RIM Double Wall Aluminum 36h Front & Rear
• TIRES KENDA 26X4.0 Front & Rear Tires
• SADDLE Kasen Comfortable
• PEDALS Wellgo Aluminum Alloy pedals
• REAR RACK  55lbs Rated Loading Weight with Pannier Side Mount
• MUDGARD   Full coverage front and rear
• SEAT POST   Aluminum Alloy 31.8mm 350L
• SEAT CLAMP Quick Release

• SPEED Up to 28 MPH on Pedal Assist and 25 MPH on Throttle
• RANGE  45-55 miles
• CHARGE   4-7 Hour Charge Time
• WEIGHT 80 LBS
• WEIGHT LIMIT Maximum payload capacity 275 lbs

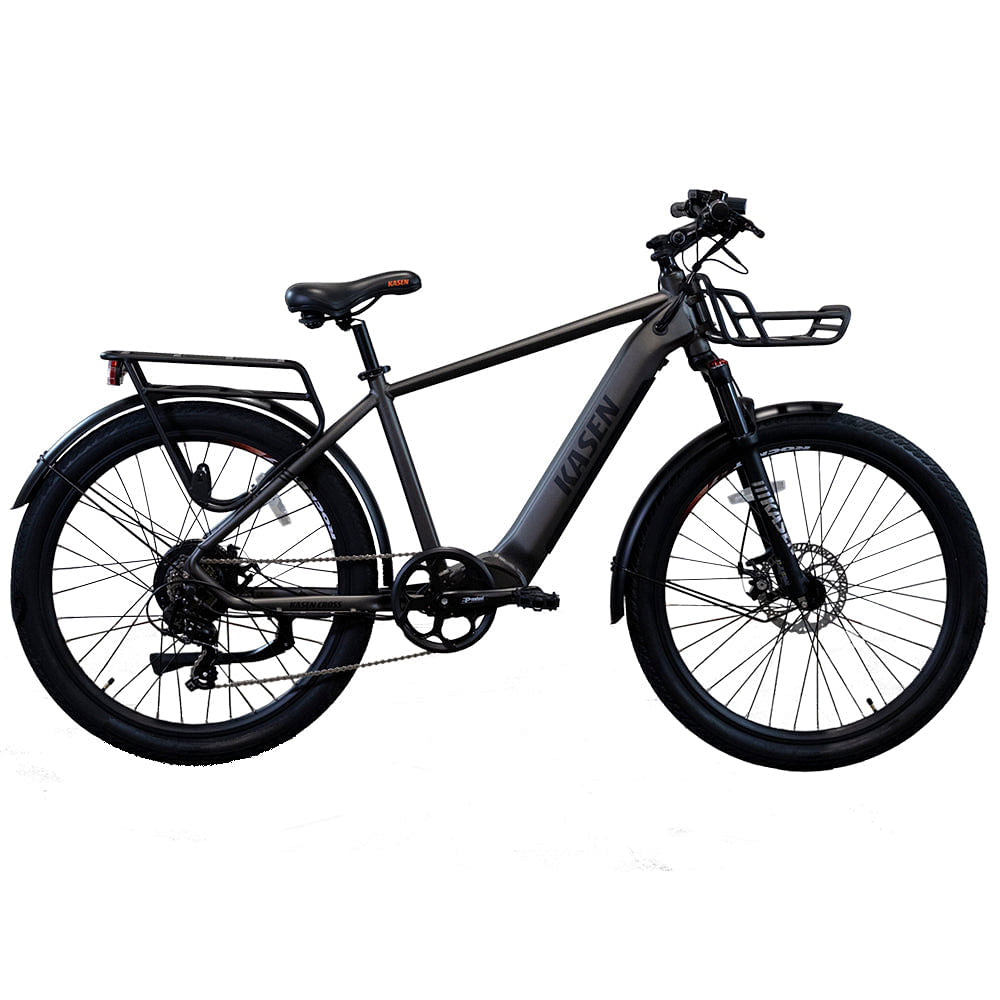

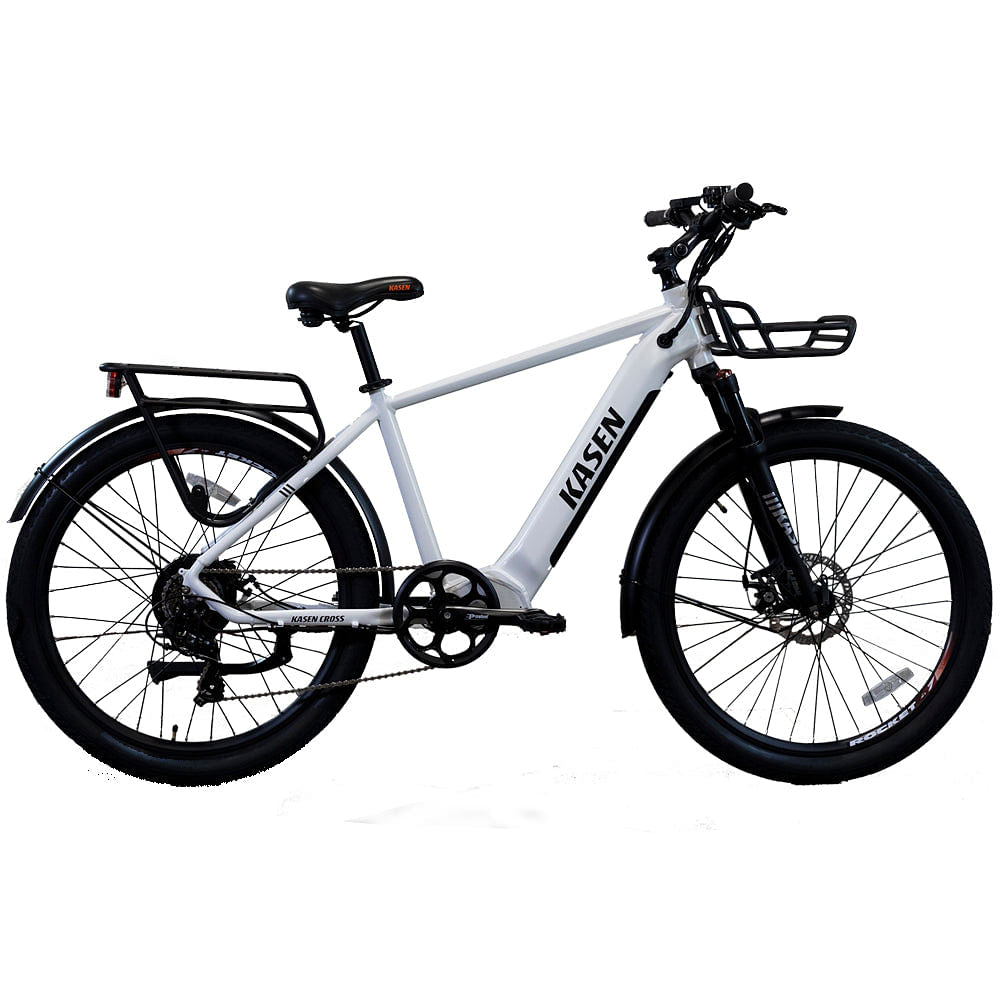

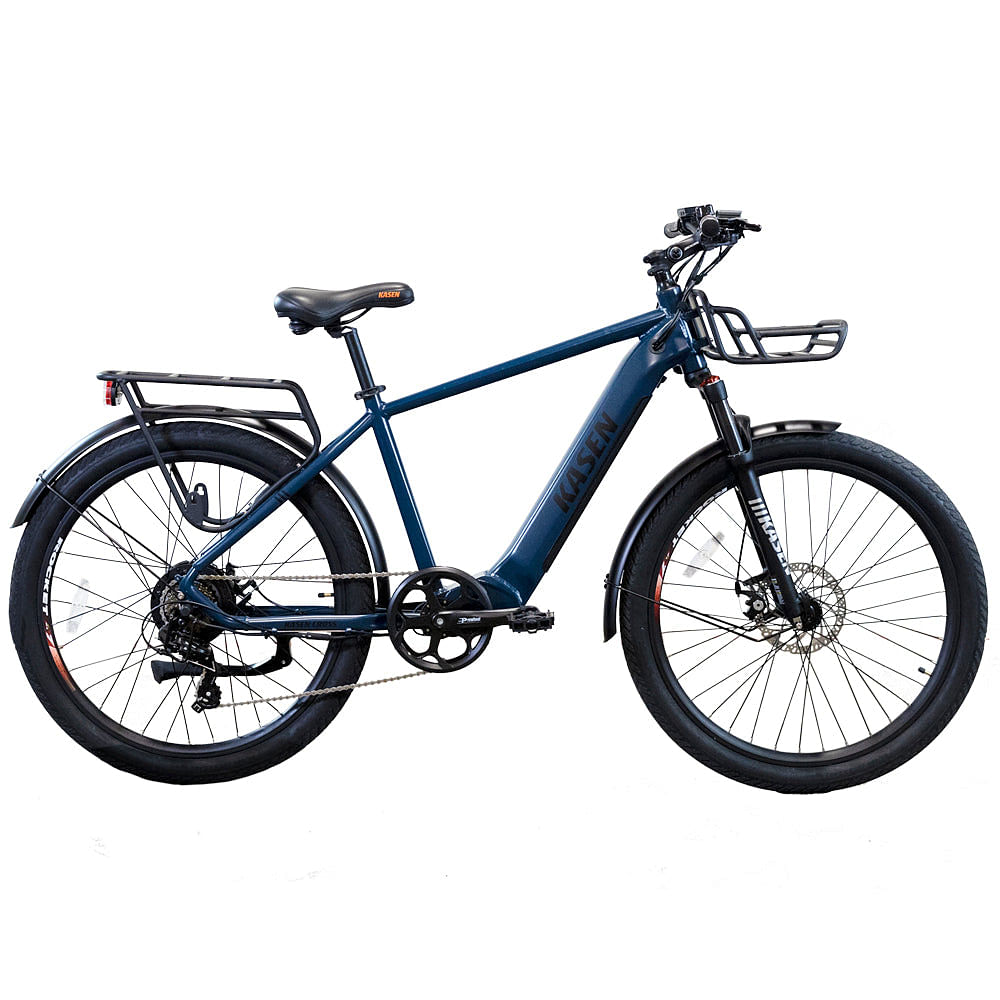

ELECTRIC SYSTEM

• Motor-- 750W (Peak) 500W (Sustained), 48V Brushless Rear Hub Motor
• Battery--SAMSUNG Removable Internal Lithium-ion 48V ,14AH (672WH)
• Charger-- 48V 2.0 Amp Smart Charger, 4-7 Hour Charge Time
• Controller--48V, 500W Frame-integrated
• Throttle-- Thumb Throttle

• Pedal Assistant-- Intelligent 5 level pedal assist with 12 magnet cadence sensor
• Charge Time-- 4-7 hours
• Display--Backlit LCD Display
• Head Light--High output 50 LUX LED Headlight

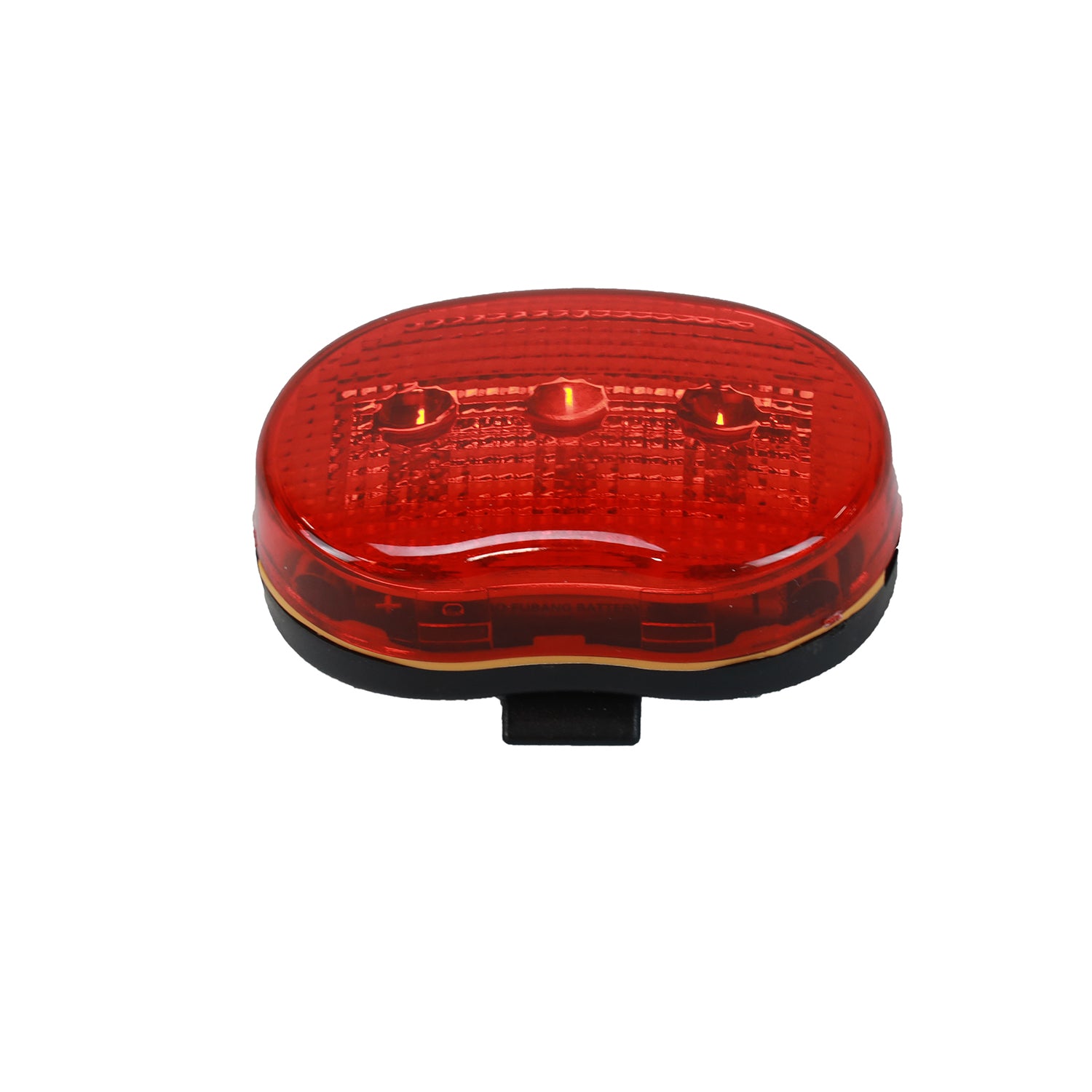

• Rear Light -- Red
• Wiring-- Water resistant connectors and wiring harness

COMPONENTS

• Frame --6061 Double-Butted Aluminum Alloy with Internal Battery
• Tires --27.5X2.4 CST Front & Rear Tires
• Wheel Rim-- Double Wall Aluminum 36h Front & Rear
• Front Fork --Hydraulic,100mm travel, with lockout and preload adjustment
• Brake --Tektro EL555 Brake Levers|

                Tektro MD-M300 180mm Front & 160mm Rear Disc Brake

• Shift Lever--Shimano 7 Speed Shifter
• Cassette-- Shimano 14T-28T Cassette
• Crankset-- Prowheeel 46T 170mm Crankse
• Handlebars -- Aluminum 31.8mm, 680mm Back Sweep 6 Degree
• Stem --Aluminum Alloy, 0-60 Degree Rise,, 105mm Length, 31.8mm
• Chain--KMC Rust Resistrant Chain
• Saddle -- Comfortable Kasen by Velo
• Grip --Durable Ergonomic Grips
• Front Basket-- Aluminum Basket
• Rear Rack --50lbs Rated Loading Weight With Pannier Side Mount
• Mudguard --Full coverage front and rear
• Seatpost-- Aluminum Alloy 28.6mm 350L
• Seat clamp-- Quick Release

• Pedals-- Composite Platform

PERFORMANCE

• Range -- Up to 45-55 miles
• Max Load -- 275 lbs
• Weight -- 60 lbs
• Package Weight -- 68 lbs
