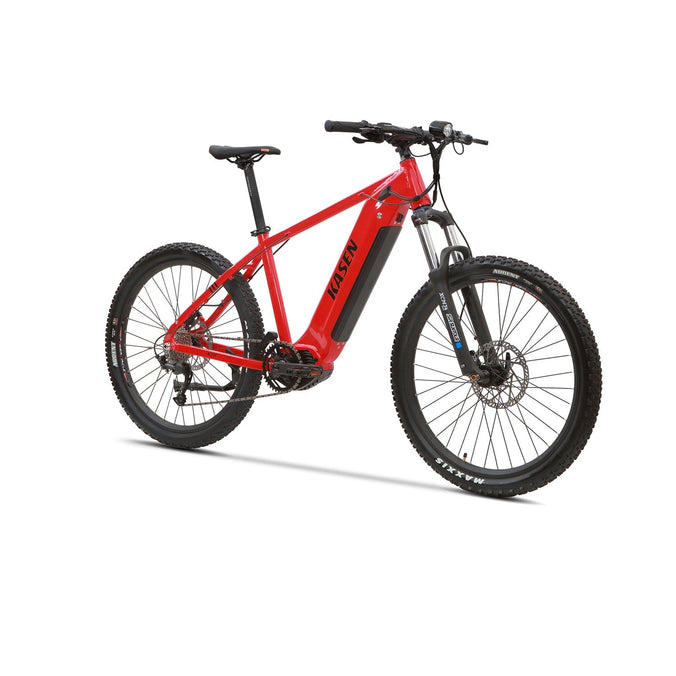

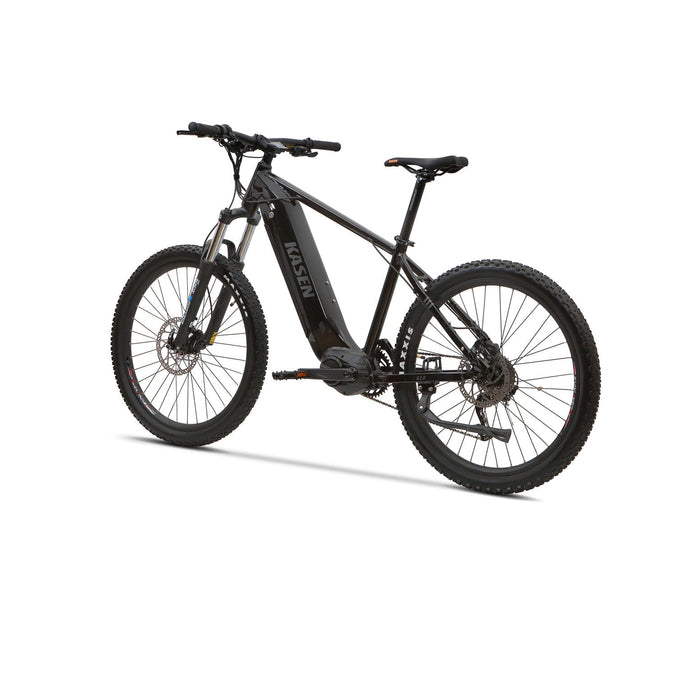

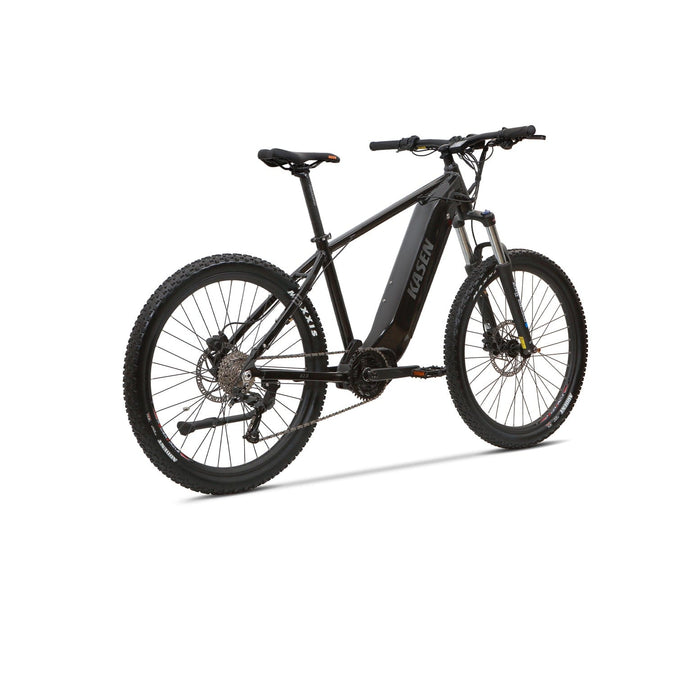

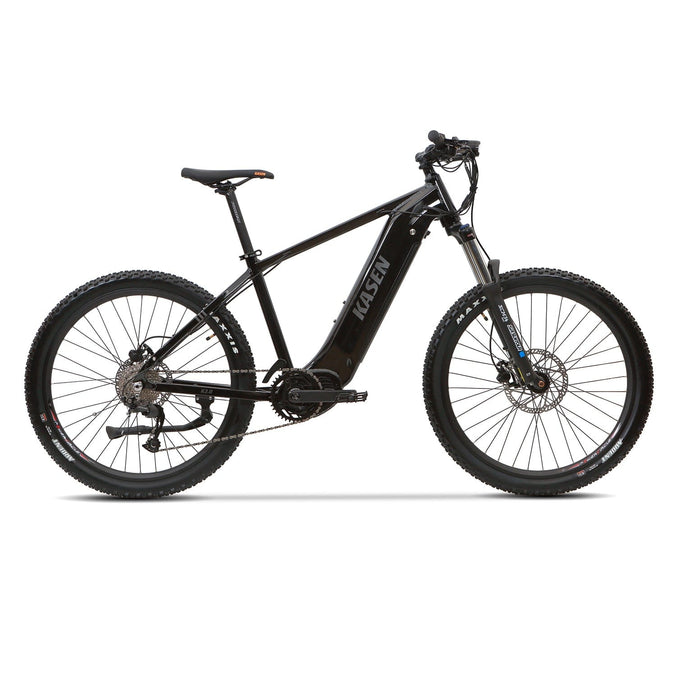

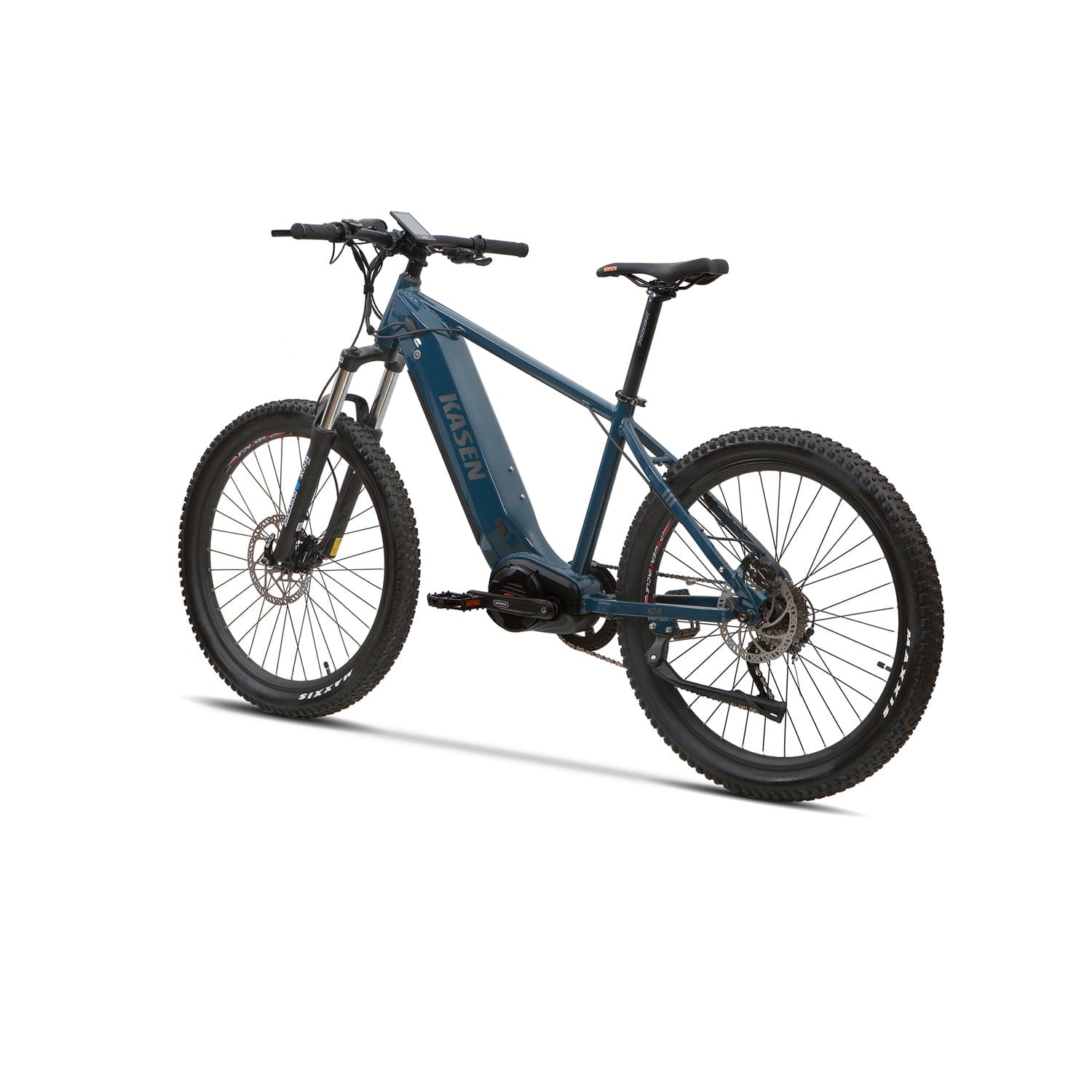

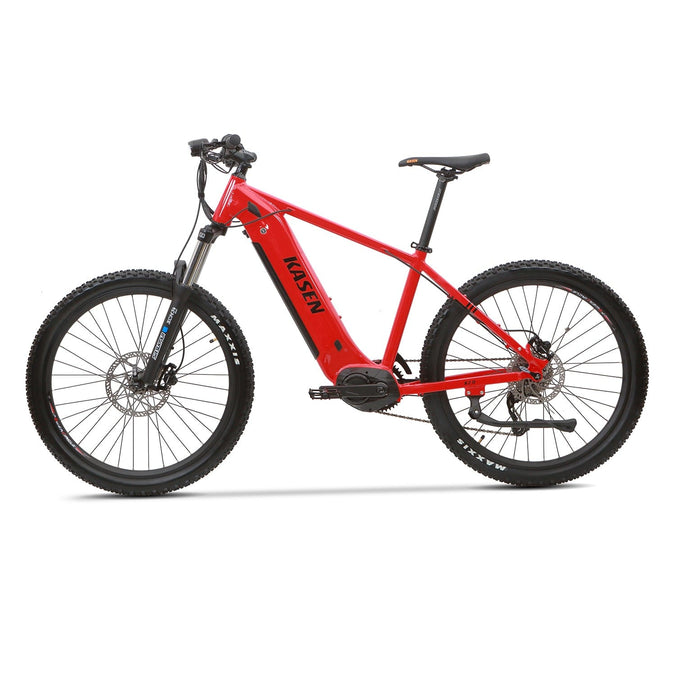

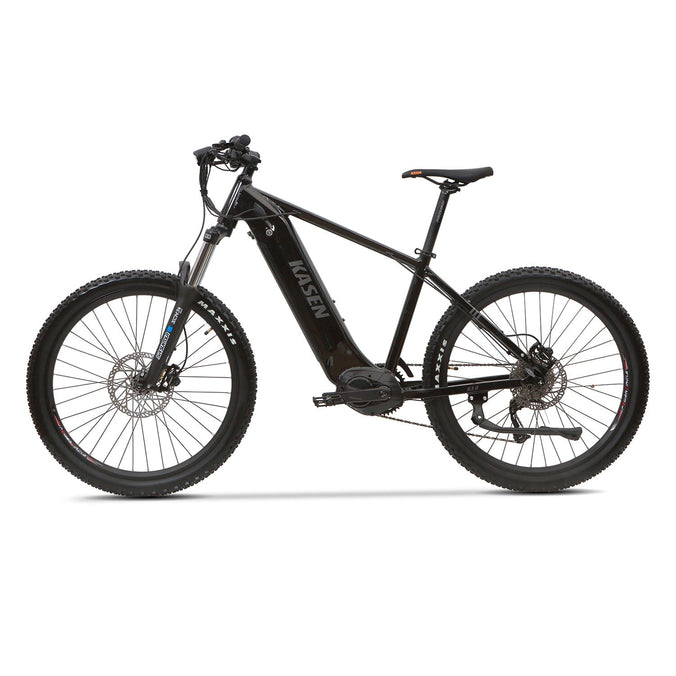

PERFORMANCE
FRAME 6061 Double-Butted Aluminum Alloy with Internal Battery
MOTOR BaFang M620 48V 1000W (Mid-Mounted Geared Motor MM G510.1000.C)
1500W (Peak) 1000W (Sustained)
SPEED Up to 35 MPH on Pedal Assist and 35 MPH on Throttle
RANGE 45-55 Miles per charge (estimate)
BATTERY Removable Internal Lithium-ion option of 15AH (720WH) /20AH (960WH) SAMSUNG
DISPLAY BAFANG DP C18.UART LCD Display
CHARGER 48V 3.0 Amp Smart Charger, 4-6 Hour Charge Time
ELECTRIC SYSTEM
CONTROLLER 48V, 1000W Frame-integrated Controller

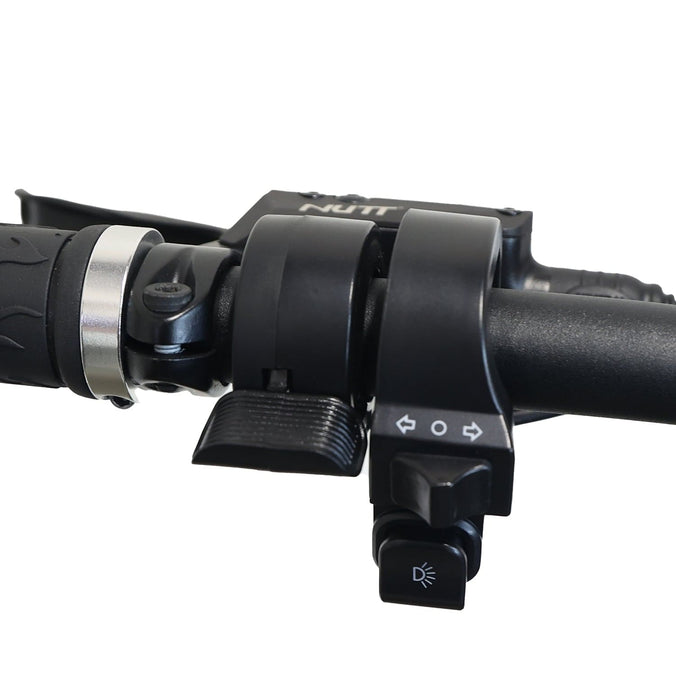

THROTTLE Thumb Throttle
PEDAL ASSIST Intelligent 5 level Pedal assist with Speed and Torque Integrated
Wiring Water resistant connectors and wiring harness
HEADLIGHT High Output 100 LUX LED Headlight

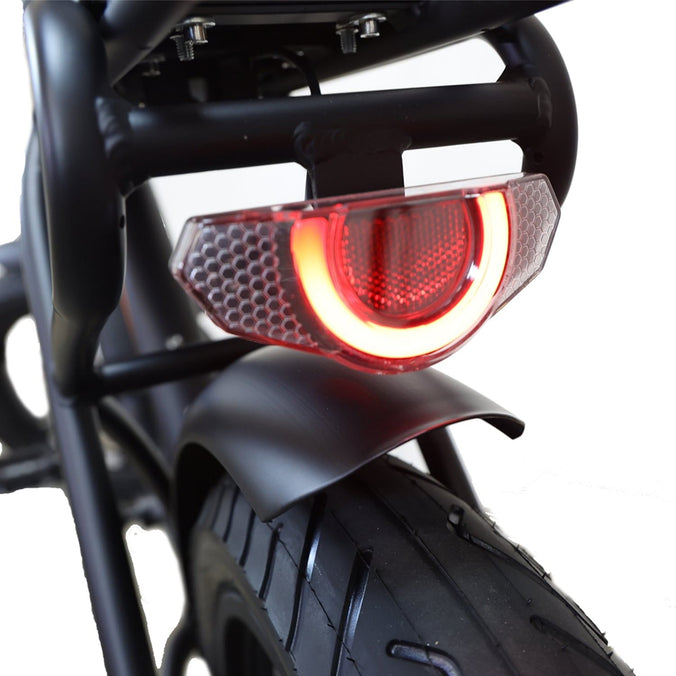

TAILLIGHT Red LED
COMPONENTS
FORK SUNTOUR XCM34 Hydraulic Suspension Fork, Boost110, 120mm Travel, with lockout and preload adjustment
BRAKE Tektro Hydraulic Disc Brake
Tektro HD-E350 203mm Front & 180mm Rear Disc Brake
WEIGHT LIMIT Maximum payload capacity 275 lbs
WEIGHT 70 LBS
SHIFT SHIMANO ALIVIO 9 Speed M3100 Series
CRANKSET 44T 170mm Crankset
CASSETTE Shimano 11T-34T Cassette
CHAIN KMC Rust Resistrant Chain
HANDLEBARS Promax Aluminum 31.8mm, 750mm Back Sweep 6 Degree
GRIPS Velo Durable ergonomic grips
STEM Promax Aluminum Alloy, 60mm Length, 31.8mm
RIM Double Wall Aluminum 36h Front & Rear
TIRES Maxxis 27.5X2.8
SEATPOST Aluminum Alloy 31.6mm 300L
SEAT CLAMP Quick Release
SADDLE KASEN
PEDALS Wellgo Aluminum Alloy Pedals
